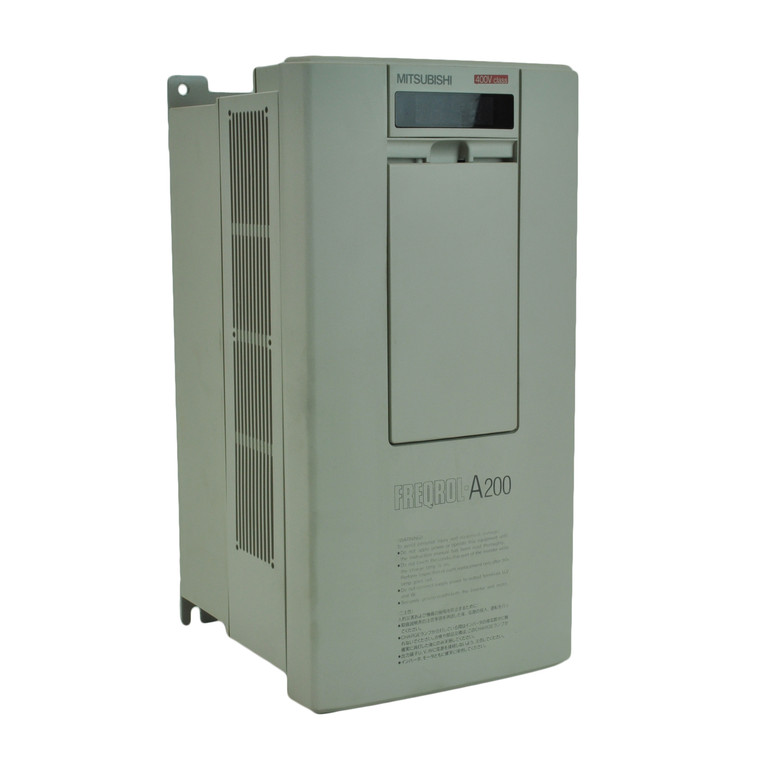

15 HP & 20HP 230V Mitsubishi VFD, Inverter, AC Drive FR-A220-11K-UL (FR-A220-11K-UL)

Brand:
MITSUBISHI
Model:
FR-A220-11K-UL
Condition:
New with Defects or Obsolete
0 Customer Reviews
Out Of Stock
Adding to cart… The item has been added

Drive Details

Manufacturer
Mitsubishi

Series
A200

Model
FR-A220-11K-UL

Condition
Obsolete

Constant/Variable Torque
CT/VT

Horse Power
CT: 15 HP
VT: 20 HP

Maximum Amps
CT: 46 A
VT: 54 A

Input
3-Phase
200-230V

Output
3-Phase
200-230V

Dimensions
Height: 15.75 in
Width: 9.84 in
Depth: 7.48 in

Enclosure
IP00


Technical Specifications

Model:
FR-A220-11K-UL
Brand:
MITSUBISHI
Product Condition:
New with Defects or Obsolete
Horsepower Rating:
15 HP
Horsepower Rating:
20 HP
HP Rating @ 120% OL:
20 HP
HP Rating @ 150% OL:
15 HP
Rated Amps:
46 A
Amp Rating @ 110% OL:
54 A
Amp Rating @ 120% OL:
54 A
Amp Rating @ 150% OL:
46 A
Rated Voltage:
230 V
Output Voltage:
230 V
Output Amperage Rating:
46 A
Phase Rating:
3 Phase Input - 3 Phase Output
Phase:
Three Phase
Enclosure Rating:
IP 00
Series:
A200
Rated Amps:
54 A
Height:
15.75 in
Width:
9.84 in
Depth:
7.48 in

Product Information

MITSUBISHI A200 Series

Mitsubishi A200 Series Variable Frequency Drive

Standard Features

  • High torque at low speeds. Magnetic flux vector control provides up to 200-300% starting torque.
  • Tripless operation. Selectable stall prevention function protects against overcurrent tripping.
  • Optional easy-to-use parameter unit. Parameter units are used for operation control, reading and writing parameters, and drive monitoring.
  • Quiet operation. Intelligent power module (IPM) incorporates IGBT transistor technology for quiet motor operation.
  • High functionality. Software configuration with many adjustable parameters allows tailoring the drive to a wide variety of applications.
