20000-24000 BTU/h, NEMA TYPE 12 Pfannenberg Cooling Unit, 13383936251

Brand: Pfannenberg
Model: 13383936251
Condition: New
Rating:
0% of 100

Out of stock
Technical Specifications
Phase Three Phase
Phase Rating 3 Phase Input - 3 Phase Output
Series DTS
Refrigerant Type R-134a
Enclosure Rating UL Type 12
Brand Pfannenberg
Product Condition New
Model 13383936251
Height 65.6 in
Width 19 in
Depth 20.5 in
Product Information

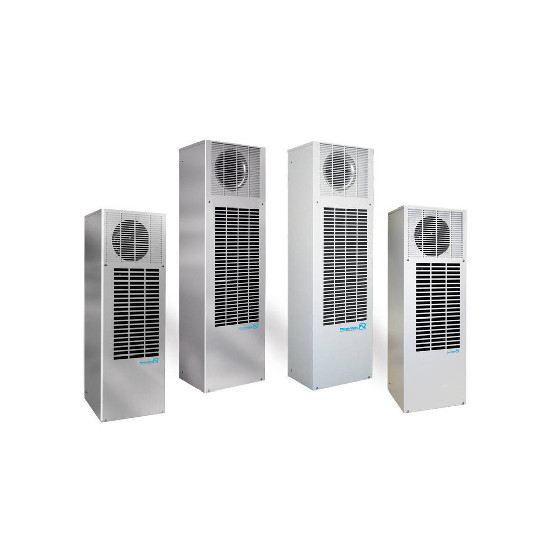

Pfannenberg DTS Series

Indoor NEMA Type 12 Side Mount Cooling Units

Pfannenberg NEMA Type 12 Side Mount Cooling units are designed to be relatively maintenance free with additional options and features for special applications. The wide condenser fin spacing allows for less maintenance and quick cleaning, and the backward curved impeller fans enable the cooling unit to operate longer without services. With its compact design, the Pfannenberg Side Mount Cooling unit is ideal for a variety of small enclosures and also hot spot cooling for larger enclosures.

Standard Features

Product Details

Manufacturer
Pfannenberg

Series
DTS

Model
13383936251

Condition
New

Cooling Capacity (BTU/h)
20000-24000

95/95 Rating (BTU/h)
20500

Nominal Current
6.3A

Starting Current
25.0A

Input
3-Phase
360-506V

Output
3-Phase
360-506V

Enclosure
NEMA TYPE 12

Construction Material
ANSI 61 Gray

Refrigerant Type
R134a

Ambient Temp. Range
15-55° C

Filter Included
No

Dimensions
Height: 65.60 in
Width: 19.00 in
Depth: 20.50 in
