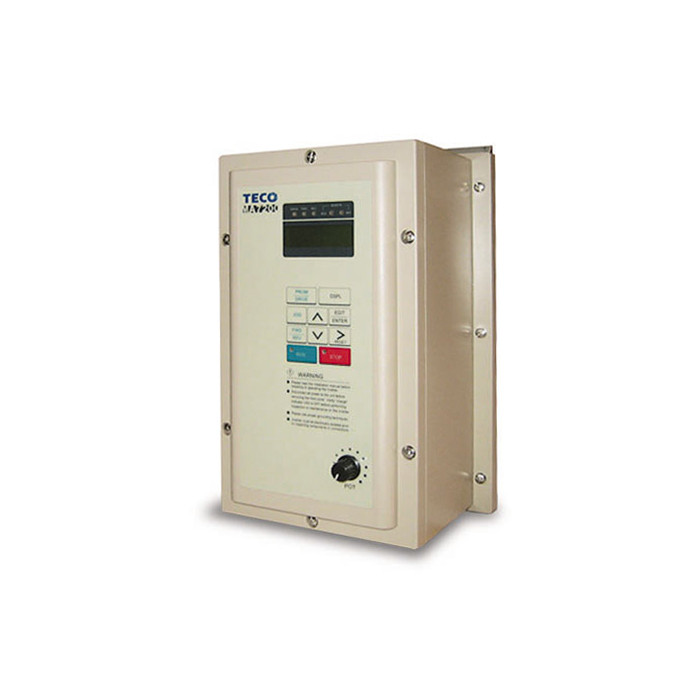

10HP 230V Teco VFD, Inverter, AC Drive MA7200-2007-N1 (MA7200-2007-N1)

Brand:
TECO
Model:
MA7200-2007-N1
Condition:
New
0 Customer Reviews
Out Of Stock
Adding to cart… The item has been added
  • Sensorless Vector, V/ Hz, and PG Feedback Control
  • 2 line English LCD Keypad/ Copy Unit
  • Flexible Input/ Ouput Configurations
  • PID Control
  • Built-in RS485 Communications (Modbus)
  • Pump Control Software Package Included
  • UL, cUL, and CE Approved

Technical Specifications

Model:
MA7200-2007-N1
Brand:
TECO
Product Condition:
New
HP Rating @ 110% OL:
10 HP
HP Rating @ 150% OL:
7.5 HP
Amp Rating @ 110% OL:
32 A
Amp Rating @ 150% OL:
24 A
Output Voltage:
230 V
Output Amperage Rating:
32 A
Phase Rating:
3 Phase Input - 3 Phase Output
Constant Torque / Variable Torque:
Variable Torque
Phase:
Three Phase
Series:
MA 7200
Horsepower Rating:
7.5 HP
Horsepower Rating:
10 HP
Rated Voltage:
230 V
Enclosure Rating:
UL Type 1
Rated Amps:
24 A
Rated Amps:
32 A
Height:
11.81 in
Width:
8.32 in
Depth:
8.46 in

Product Information

TECO MA 7200 Series

The MA7200 Plus is a general purpose V/ Hz or sensorless vector drive that is capable of handling a wide variety of applications. THe MA7200 Plus contains an enhanced parameter set for HVAC and wastewater applications.
