Technical Specifications
Model:
SJ700D-004LFUF3
Brand:
HITACHI
Product Condition:
New
Horsepower Rating:
0.5 HP
Horsepower Rating:
1 HP
HP Rating @ 120% OL:
1 HP
HP Rating @ 150% OL:
0.5 HP
Rated Amps:
3 A
Amp Rating @ 120% OL:
3.7 A
Amp Rating @ 150% OL:
3 A
Rated Voltage:
230 V
Output Voltage:
230 V
Output Amperage Rating:
3 A
Phase Rating:
3 Phase Input - 3 Phase Output
Phase:
Three Phase
Enclosure Rating:
IP 20
Height:
10.04 in
Width:
5.91 in
Depth:
5.51 in
Product Information

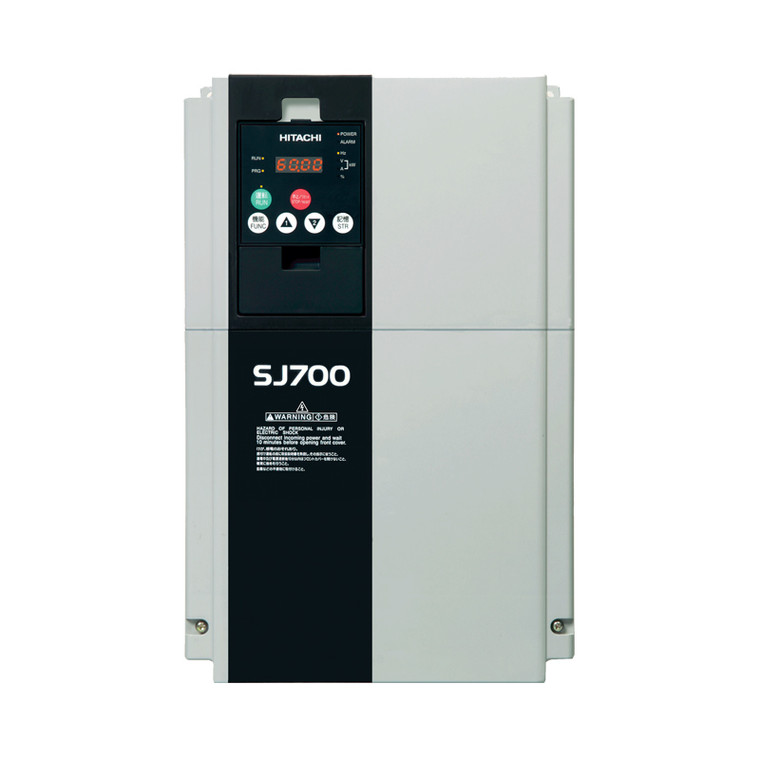

HITACHI SJ700D Series
Hitachi industrial SJ700D Series AC Variable Speed Drives and inverters are the first off-the-shelf units with integral easy sequence programmable functionality (EzSQ) as a standard feature. The SJ700D Series inverters can handle complex applications with ease because of the new Easy Sequence (EzSQ) programming software, precise positioning, and safe stop according to EN954-1. Using its improved sensorless vector (SLV) control algorithm, the SJ700D can develop over 200% starting torque at 0.3 Hz and 150% torque at 0 Hz.
Highlights
- Advanced Sensorless Vector Control and Auto Tuning
- Easy Sequence (EzSQ) software – internal PLC-like controller
- High starting torque at low speeds (150% at 0.3Hz)
- Full Vector Control with optional Feedback Board
- Micro Surge Voltage suppress function
- Improved and simplified auto-tuning
- Built-in PLC type programming functions
- Built in Modbus/RTU communications
- Ratings:
- 1/2 hp to 75 hp, 230 V, 3 phase
- 1 to 600 hp, 460V, 3 phase
