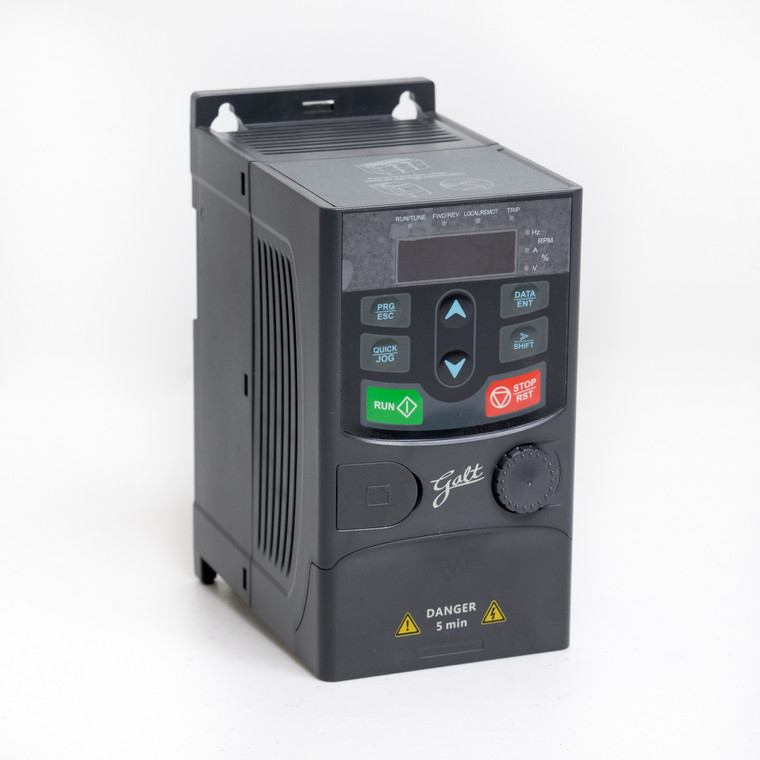

0.5HP 230V Galt Electric G200 VFD, Inverter, AC Drive G22S0-00025UL-02

Brand: GALT ELECTRIC
Model: G22S0-00025UL-02
Condition: New
Rating:
0% of 100

In stock
Order now to ship tomorrow
$116.00

Highlights

  • Air-cooling technology implemented
  • Compact design with the option of parallel installation
  • External keypad used to change input/output settings easily
  • QR Code Display for Additional Parameter Information and Fault Troubleshooting
Compare with similar items

Technical Specifications
Phase Single Phase
Phase Rating 1 Phase Input - 3 Phase Output
Constant Torque / Variable Torque Variable Torque
Series G200
Rated Amps 2.5 A
Enclosure Rating IP 20
Brand GALT ELECTRIC
Horsepower Rating 0.5 HP
Rated Voltage 230 V
Product Condition New
Output Voltage 230 V
Output Amperage Rating 2.5 A
HP Rating @ 150% OL 0.5 HP
Amp Rating @ 150% OL 2.5 A
Model G22S0-00025UL-02
Height 6.3 in
Width 3.15 in
Depth 4.86 in
Warranty 3 Years
Product Information

GALT ELECTRIC G200 Series

The G200 series is an industrial duty inverter that can be used for a wide range of applications. The G200's air duct design, hardware configuration, and software capabilities all greatly improve the adaptability along with the user friendliness. Additionally, the G200 series uses vectorized V/F control technology to deliver excellent performance with little-to-no maintenance.

Highlights

  • Air-cooling technology implemented
  • Compact design with the option of parallel installation
  • External keypad used to change input/output settings easily
  • QR Code Display for Additional Parameter Information and Fault Troubleshooting

Standard Features

  • DC injection, dynamic, and flux braking
  • Modbus Communication protocol standard (Standard 485 communication interface)
  • Integrated PID controller
  • Open-loop sensorless vector
  • Real-time accumulative power consumption display
  • Built-in standard keypad

Product Features


Galt Electric G200 Series Inverter


The G200 series is a industrial duty inverter that can be used for a wide range of applications. The G200's air duct design, hardware configuration, and software capabilities all greatly improve the adaptability along with the userfriendlyness. Additionally, the G200 series uses vectorized V/F control technology to deliver excellent performance with little-to-no maintenance.

  • Air-cooling technology implemented
  • Compact design with the option of parallel installation
  • External keypad used to change input/output settings easily
  • QR Code Display for Additional Parameter Information and Fault Troubleshooting
  • DC injection, dynamic, and flux braking
  • Modbus Communication protocol standard (Standard 485 communication interface)
  • Integrated PID controller
  • Open-loop sensorless vector
  • Real-time accumulative power consumption display
  • Built-in standard keypad
