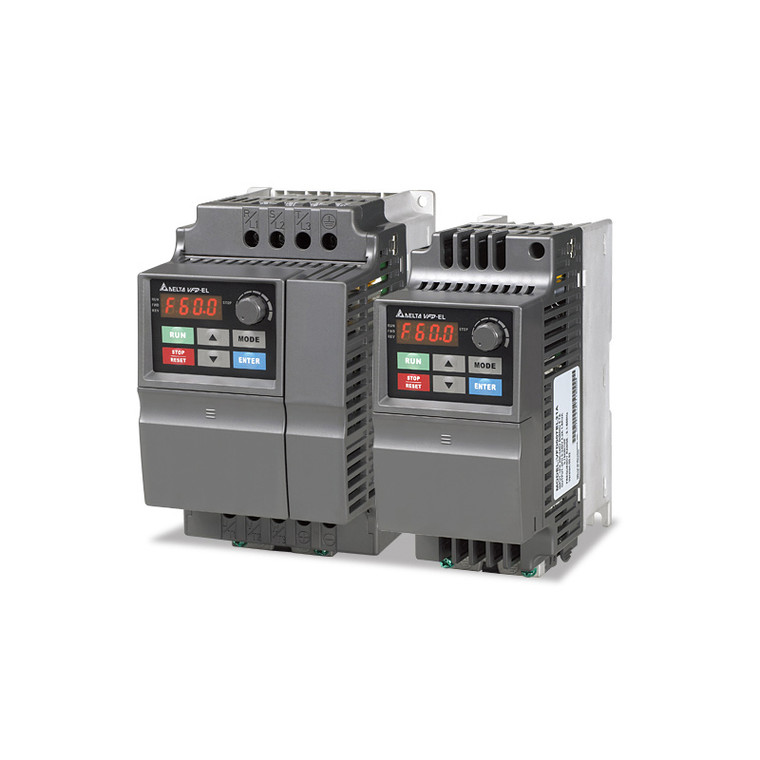

0.5HP 230V Delta VFD-EL VFD, Inverter, AC Drive VFD004EL23A (VFD004EL23A)

0.5HP 230V Delta VFD-EL VFD, Inverter, AC Drive VFD004EL23A (VFD004EL23A)

Brand:
Delta
Model:
VFD004EL23A
Condition:
New
0 Customer Reviews
VFDs.com Guarantee Badge
Out Of Stock
Call for Price
Adding to cart… The item has been added
  • Output frequency: 0.1 ~ 600Hz
  • 3 points adjustable V/f curve
  • Built-in PID feedback control
  • RFI-switch for IT mains
  • Built-in EMI filter (for models 230V 1-phase and 460V 3-phase)
  • Use RS-485 communication interface (RJ-45) with Modbus protocol
  • Optional communication modules for multiple communication protocols, such as Profibus,
  • DeviceNet, LonWorks and CANopen
  • Complete protection function
Write a Review

Technical Specifications

Model:
VFD004EL23A
Brand:
Delta
Product Condition:
New
Warranty:
2 Year
Horsepower Rating:
0.5 HP
HP Rating @ 150% OL:
0.5 HP
Rated Amps:
2.5 A
Amp Rating @ 150% OL:
2.5 A
Rated Voltage:
230 V
Rated Input Frequency:
60 Hz
Output Voltage:
230 V
Output Amperage Rating:
2.5 A
Phase Rating:
3 Phase Input - 3 Phase Output
Constant Torque / Variable Torque:
Variable Torque/Constant Torque
Phase:
Three Phase
Enclosure Rating:
IP 20
Series:
VFD-EL
Height:
6.86 in
Width:
2.83 in
Depth:
5.36 in

Product Information

Delta VFD-EL Series

The VFD-EL series is multiple function new generation micro type AC drive. It has built in EMI filter, RFI switch, easy DC bus sharing for side-by-side installation, high precision current detection, overload protection, and a built-in keypad.
