APPLICATIONS:

For general industrial equipment including fans, blowers, compressors, pumps and direct connected equipment.

  • US Motors (Nidec) logo US Motors (Nidec), AC Motor, U34P3GC, 0.75 HP, 1200 RPM, Three Phase, 575 V, 60 Hz, 56C (U34P3GC)

    US Motors (Nidec), AC Motor, U34P3GC, 0.75 HP, 1200 RPM, Three Phase, 575 V, 60 Hz, 56C (U34P3GC)

    • Model:
      U34P3GC
    • Brand:
      US Motors (Nidec)
    • Product Condition:
      New
    • Motor Type:
      General Purpose
    • Horsepower Rating:
      0.75 HP
    • Synchronous RPM:
      1200 RPM
    • Rated RPM:
      1165 RPM
    • Frame Size:
      56C
    • Rated Supply Voltage:
      575 V
    • Motor Enclosure Type:
      Totally Enclosed Fan Cooled (TEFC)
    • Motor Design Class:
      B
    • Full Load Torque:
      3.4
    • Rated Voltage:
      575 V
    • Phase:
      Three Phase
    • Service Factor:
      1.25
    • Insulation Class:
      F
    • Duty Cycle:
      Continuous
    • Efficiency:
      82.5%
    • Construction:
      Aluminum
    • Bearing Type:
      6203-2Z-J/C3
    • Rated Input Frequency:
      60 Hz
    • Motor Full Load Amps:
      1.2 A
    • Weight:
      30.00 LBS
    Out Of Stock
    Call for Price
    Adding to cart… The item has been added
    VIEW DETAILS
  • US Motors (Nidec) logo US Motors (Nidec), AC Motor, U34P3G14C, 0.75 HP, 1200 RPM, Three Phase, 575 V, 60 Hz, 143TC (U34P3G14C)

    US Motors (Nidec), AC Motor, U34P3G14C, 0.75 HP, 1200 RPM, Three Phase, 575 V, 60 Hz, 143TC (U34P3G14C)

    • Model:
      U34P3G14C
    • Brand:
      US Motors (Nidec)
    • Product Condition:
      New
    • Motor Type:
      General Purpose
    • Horsepower Rating:
      0.75 HP
    • Synchronous RPM:
      1200 RPM
    • Rated RPM:
      1165 RPM
    • Frame Size:
      143TC
    • Rated Supply Voltage:
      575 V
    • Motor Enclosure Type:
      Totally Enclosed Fan Cooled (TEFC)
    • Motor Design Class:
      B
    • Full Load Torque:
      3.4
    • Rated Voltage:
      575 V
    • Phase:
      Three Phase
    • Service Factor:
      1.25
    • Insulation Class:
      F
    • Duty Cycle:
      Continuous
    • Efficiency:
      82.5%
    • Construction:
      Rolled Steel
    • Bearing Type:
      ETO
    • Rated Input Frequency:
      60 Hz
    • Motor Full Load Amps:
      1.2 A
    • Weight:
      30.00 LBS
    Out Of Stock
    Call for Price
    Adding to cart… The item has been added
    VIEW DETAILS
  • US Motors (Nidec) logo US Motors (Nidec), AC Motor, U34P3G14, 0.75 HP, 1200 RPM, Three Phase, 575 V, 60 Hz, 143T (U34P3G14)

    US Motors (Nidec), AC Motor, U34P3G14, 0.75 HP, 1200 RPM, Three Phase, 575 V, 60 Hz, 143T (U34P3G14)

    • Model:
      U34P3G14
    • Brand:
      US Motors (Nidec)
    • Product Condition:
      New
    • Motor Type:
      General Purpose
    • Horsepower Rating:
      0.75 HP
    • Synchronous RPM:
      1200 RPM
    • Rated RPM:
      1165 RPM
    • Frame Size:
      143T
    • Rated Supply Voltage:
      575 V
    • Motor Enclosure Type:
      Totally Enclosed Fan Cooled (TEFC)
    • Motor Design Class:
      B
    • Full Load Torque:
      3.4
    • Rated Voltage:
      575 V
    • Phase:
      Three Phase
    • Service Factor:
      1.25
    • Insulation Class:
      F
    • Duty Cycle:
      Continuous
    • Efficiency:
      82.5%
    • Construction:
      Rolled Steel
    • Bearing Type:
      6203-2Z-J/C3
    • Rated Input Frequency:
      60 Hz
    • Motor Full Load Amps:
      1.2 A
    • Weight:
      30.00 LBS
    Out Of Stock
    Call for Price
    Adding to cart… The item has been added
    VIEW DETAILS
  • US Motors (Nidec) logo US Motors (Nidec), AC Motor, U34P2GCR, 0.75 HP, 1800 RPM, Three Phase, 575 V, 60 Hz, 56C (U34P2GCR)

    US Motors (Nidec), AC Motor, U34P2GCR, 0.75 HP, 1800 RPM, Three Phase, 575 V, 60 Hz, 56C (U34P2GCR)

    • Model:
      U34P2GCR
    • Brand:
      US Motors (Nidec)
    • Product Condition:
      New
    • Motor Type:
      General Purpose
    • Horsepower Rating:
      0.75 HP
    • Synchronous RPM:
      1800 RPM
    • Rated RPM:
      1745 RPM
    • Frame Size:
      56C
    • Rated Supply Voltage:
      575 V
    • Motor Enclosure Type:
      Totally Enclosed Fan Cooled (TEFC)
    • Motor Design Class:
      B
    • Full Load Torque:
      2.3
    • Rated Voltage:
      575 V
    • Phase:
      Three Phase
    • Service Factor:
      1.25
    • Insulation Class:
      F
    • Duty Cycle:
      Continuous
    • Efficiency:
      81.5%
    • Bearing Type:
      6203-2Z-J/C3
    • Rated Input Frequency:
      60 Hz
    • Motor Full Load Amps:
      1 A
    • Weight:
      30.00 LBS
    Out Of Stock
    Call for Price
    Adding to cart… The item has been added
    VIEW DETAILS

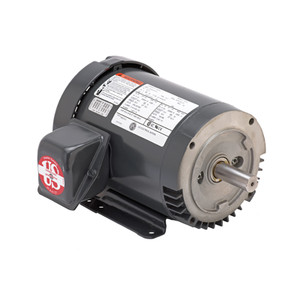

  • US Motors (Nidec) logo US Motors (Nidec), AC Motor, U34P2GC, 0.75 HP, 1800 RPM, Three Phase, 575 V, 60 Hz, 56C (U34P2GC)

    US Motors (Nidec), AC Motor, U34P2GC, 0.75 HP, 1800 RPM, Three Phase, 575 V, 60 Hz, 56C (U34P2GC)

    • Model:
      U34P2GC
    • Brand:
      US Motors (Nidec)
    • Product Condition:
      New
    • Motor Type:
      General Purpose
    • Horsepower Rating:
      0.75 HP
    • Synchronous RPM:
      1800 RPM
    • Rated RPM:
      1745 RPM
    • Frame Size:
      56C
    • Rated Supply Voltage:
      575 V
    • Motor Enclosure Type:
      Totally Enclosed Fan Cooled (TEFC)
    • Motor Design Class:
      B
    • Full Load Torque:
      2.3
    • Rated Voltage:
      575 V
    • Phase:
      Three Phase
    • Service Factor:
      1.25
    • Insulation Class:
      F
    • Duty Cycle:
      Continuous
    • Efficiency:
      81.5%
    • Construction:
      Aluminum
    • Bearing Type:
      6203-2Z-J/C3
    • Rated Input Frequency:
      60 Hz
    • Motor Full Load Amps:
      1 A
    • Weight:
      30.00 LBS
    Out Of Stock
    Call for Price
    Adding to cart… The item has been added
    VIEW DETAILS
  • US Motors (Nidec) logo US Motors (Nidec), AC Motor, U34P2DCR, 0.75 HP, 1800 RPM, Three Phase, 208-230/460 & 190/380 V, 60 , 50 Hz, 56C (U34P2DCR)

    US Motors (Nidec), AC Motor, U34P2DCR, 0.75 HP, 1800 RPM, Three Phase, 208-230/460 & 190/380 V, 60 , 50 Hz, 56C (U34P2DCR)

    • Model:
      U34P2DCR
    • Brand:
      US Motors (Nidec)
    • Product Condition:
      New
    • Motor Type:
      General Purpose
    • Horsepower Rating:
      0.75 HP
    • Synchronous RPM:
      1800 RPM
    • Frame Size:
      56C
    • Rated Supply Voltage:
      208-230/460 & 190/380 V
    • Motor Enclosure Type:
      Totally Enclosed Fan Cooled (TEFC)
    • Rated Voltage:
      208 V
    • Rated Voltage:
      230 V
    • Rated Voltage:
      380 V
    • Rated Voltage:
      460 V
    • Phase:
      Three Phase
    • C Dimension:
      12
    • Rated Input Frequency:
      60 Hz
    • Rated Input Frequency:
      50 Hz
    • Weight:
      30.00 LBS
    Out Of Stock
    Call for Price
    Adding to cart… The item has been added
    VIEW DETAILS
  • US Motors (Nidec) logo US Motors (Nidec), AC Motor, U34P1GCR, 0.75 HP, 3600 RPM, Three Phase, 575 V, 60 Hz, 56C (U34P1GCR)

    US Motors (Nidec), AC Motor, U34P1GCR, 0.75 HP, 3600 RPM, Three Phase, 575 V, 60 Hz, 56C (U34P1GCR)

    • Model:
      U34P1GCR
    • Brand:
      US Motors (Nidec)
    • Product Condition:
      New
    • Motor Type:
      General Purpose
    • Horsepower Rating:
      0.75 HP
    • Synchronous RPM:
      3600 RPM
    • Rated RPM:
      3505 RPM
    • Frame Size:
      56C
    • Rated Supply Voltage:
      575 V
    • Motor Enclosure Type:
      Totally Enclosed Fan Cooled (TEFC)
    • Motor Design Class:
      B
    • Full Load Torque:
      1.1
    • Rated Voltage:
      575 V
    • Phase:
      Three Phase
    • Service Factor:
      1.25
    • Insulation Class:
      F
    • Duty Cycle:
      Continuous
    • Efficiency:
      77%
    • Bearing Type:
      ETO
    • Rated Input Frequency:
      60 Hz
    • Motor Full Load Amps:
      0.8 A
    • Weight:
      0.01 LBS
    Out Of Stock
    Call for Price
    Adding to cart… The item has been added
    VIEW DETAILS
  • US Motors (Nidec) logo US Motors (Nidec), AC Motor, U34P1G, 0.75 HP, 3600 RPM, Three Phase, 575 V, 60 Hz, 56 (U34P1G)

    US Motors (Nidec), AC Motor, U34P1G, 0.75 HP, 3600 RPM, Three Phase, 575 V, 60 Hz, 56 (U34P1G)

    • Model:
      U34P1G
    • Brand:
      US Motors (Nidec)
    • Product Condition:
      New
    • Motor Type:
      General Purpose
    • Horsepower Rating:
      0.75 HP
    • Synchronous RPM:
      3600 RPM
    • Rated RPM:
      3505 RPM
    • Frame Size:
      56
    • Rated Supply Voltage:
      575 V
    • Motor Enclosure Type:
      Totally Enclosed Fan Cooled (TEFC)
    • Motor Design Class:
      B
    • Full Load Torque:
      1.1
    • Rated Voltage:
      575 V
    • Phase:
      Three Phase
    • Service Factor:
      1.25
    • Insulation Class:
      F
    • Duty Cycle:
      Continuous
    • Efficiency:
      77%
    • Construction:
      Aluminum
    • Bearing Type:
      ETO
    • Rated Input Frequency:
      60 Hz
    • Motor Full Load Amps:
      0.8 A
    • Weight:
      0.01 LBS
    Out Of Stock
    Call for Price
    Adding to cart… The item has been added
    VIEW DETAILS
  • US Motors (Nidec) logo US Motors (Nidec), AC Motor, U32P2HC, 1.5 HP, 1800 RPM, Three Phase, 200 V, 60 Hz, 145TC (U32P2HC)

    US Motors (Nidec), AC Motor, U32P2HC, 1.5 HP, 1800 RPM, Three Phase, 200 V, 60 Hz, 145TC (U32P2HC)

    • Model:
      U32P2HC
    • Brand:
      US Motors (Nidec)
    • Product Condition:
      New
    • Motor Type:
      General Purpose
    • Horsepower Rating:
      1.5 HP
    • Synchronous RPM:
      1800 RPM
    • Rated RPM:
      1745 RPM
    • Frame Size:
      145TC
    • Rated Supply Voltage:
      200 V
    • Motor Enclosure Type:
      Totally Enclosed Fan Cooled (TEFC)
    • Motor Design Class:
      B
    • Full Load Torque:
      4.5
    • Rated Voltage:
      208 V
    • Phase:
      Three Phase
    • Service Factor:
      1.25
    • Insulation Class:
      F
    • Duty Cycle:
      Continuous
    • Efficiency:
      86.5%
    • Construction:
      Rolled Steel
    • C Dimension:
      13.1
    • Bearing Type:
      6203-2Z-J/C3
    • Rated Input Frequency:
      60 Hz
    • Motor Full Load Amps:
      4.7 A
    • Weight:
      35.00 LBS
    Out Of Stock
    Call for Price
    Adding to cart… The item has been added
    VIEW DETAILS
  • US Motors (Nidec) logo US Motors (Nidec), AC Motor, U32P2H, 1.5 HP, 1800 RPM, Three Phase, 200 V, 60 Hz, 145T (U32P2H)

    US Motors (Nidec), AC Motor, U32P2H, 1.5 HP, 1800 RPM, Three Phase, 200 V, 60 Hz, 145T (U32P2H)

    • Model:
      U32P2H
    • Brand:
      US Motors (Nidec)
    • Product Condition:
      New
    • Motor Type:
      General Purpose
    • Horsepower Rating:
      1.5 HP
    • Synchronous RPM:
      1800 RPM
    • Rated RPM:
      1745 RPM
    • Frame Size:
      145T
    • Rated Supply Voltage:
      200 V
    • Motor Enclosure Type:
      Totally Enclosed Fan Cooled (TEFC)
    • Motor Design Class:
      B
    • Full Load Torque:
      4.5
    • Rated Voltage:
      208 V
    • Phase:
      Three Phase
    • Service Factor:
      1.25
    • Insulation Class:
      F
    • Duty Cycle:
      Continuous
    • Efficiency:
      86.5%
    • Construction:
      Rolled Steel
    • C Dimension:
      12.7
    • Bearing Type:
      6203-2Z-J/C3
    • Rated Input Frequency:
      60 Hz
    • Motor Full Load Amps:
      4.7 A
    • Weight:
      35.00 LBS
    Out Of Stock
    Call for Price
    Adding to cart… The item has been added
    VIEW DETAILS
  • US Motors (Nidec) logo US Motors (Nidec), AC Motor, U32P2GH, 1.5 HP, 1800 RPM, Three Phase, 575 V, 60 Hz, 56 (U32P2GH)

    US Motors (Nidec), AC Motor, U32P2GH, 1.5 HP, 1800 RPM, Three Phase, 575 V, 60 Hz, 56 (U32P2GH)

    • Model:
      U32P2GH
    • Brand:
      US Motors (Nidec)
    • Product Condition:
      New
    • Motor Type:
      General Purpose
    • Horsepower Rating:
      1.5 HP
    • Synchronous RPM:
      1800 RPM
    • Rated RPM:
      1755 RPM
    • Frame Size:
      56
    • Rated Supply Voltage:
      575 V
    • Motor Enclosure Type:
      Totally Enclosed Fan Cooled (TEFC)
    • Motor Design Class:
      B
    • Full Load Torque:
      4.5
    • Rated Voltage:
      575 V
    • Phase:
      Three Phase
    • Service Factor:
      1.25
    • Insulation Class:
      F
    • Duty Cycle:
      Continuous
    • Efficiency:
      86.5%
    • Construction:
      Aluminum
    • C Dimension:
      12.5
    • Bearing Type:
      6203-2Z-J/C3
    • Rated Input Frequency:
      60 Hz
    • Motor Full Load Amps:
      1.7 A
    • Weight:
      35.00 LBS
    Out Of Stock
    Call for Price
    Adding to cart… The item has been added
    VIEW DETAILS
  • US Motors (Nidec) logo US Motors (Nidec), AC Motor, U32P2GFCR, 1.5 HP, 1800 RPM, Three Phase, 575 V, 60 Hz, 56C (U32P2GFCR)

    US Motors (Nidec), AC Motor, U32P2GFCR, 1.5 HP, 1800 RPM, Three Phase, 575 V, 60 Hz, 56C (U32P2GFCR)

    • Model:
      U32P2GFCR
    • Brand:
      US Motors (Nidec)
    • Product Condition:
      New
    • Motor Type:
      General Purpose
    • Horsepower Rating:
      1.5 HP
    • Synchronous RPM:
      1800 RPM
    • Rated RPM:
      1755 RPM
    • Frame Size:
      56C
    • Rated Supply Voltage:
      575 V
    • Motor Enclosure Type:
      Totally Enclosed Fan Cooled (TEFC)
    • Motor Design Class:
      B
    • Full Load Torque:
      4.5
    • Rated Voltage:
      575 V
    • Phase:
      Three Phase
    • Service Factor:
      1.25
    • Insulation Class:
      F
    • Duty Cycle:
      Continuous
    • Efficiency:
      86.5%
    • C Dimension:
      13.1
    • Bearing Type:
      6203-2Z-J/C3
    • Rated Input Frequency:
      60 Hz
    • Motor Full Load Amps:
      1.7 A
    • Weight:
      30.00 LBS
    Out Of Stock
    Call for Price
    Adding to cart… The item has been added
    VIEW DETAILS
