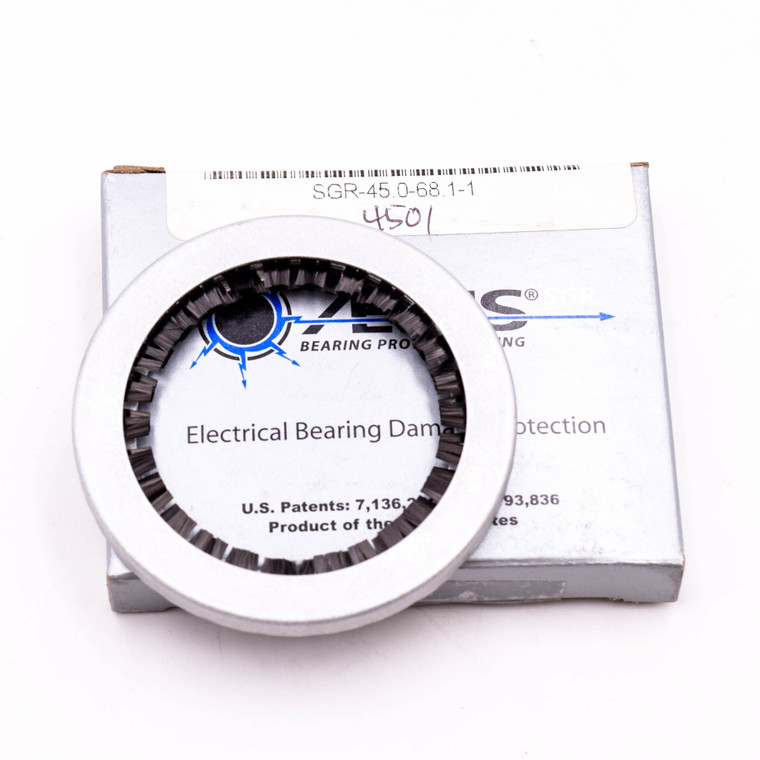

SGR-45.0-1 AEGIS SGR Shaft Grounding/Bearing Protection Ring (SGR-45.0-1)

SGR-45.0-1 AEGIS SGR Shaft Grounding/Bearing Protection Ring (SGR-45.0-1)

Brand:
AEGIS
Model:
SGR-45.0-1
Condition:
New
0 Customer Reviews
VFDs.com Guarantee Badge
In Stock
$226.00
Online Price: $214.70
Adding to cart… The item has been added
  • Fits shaft diameters of 1.811 to 1.855 inches
  • Can be mounted with bracket, press fit, or conductive epoxy
  • Quick and easy installation
  • Ships with mounting brackets, screws, and washers
    • Free shipping over $50*
    Write a Review

    Technical Specifications

    Product Information

    AEGIS Series

    1.811" to 1.855" Shaft Diameter; 2.68" OD; 0.295" Max Thickness; Solid Ring with mounting brackets, 6-32 screws and washers

    Standard Features

    AEGIS SGR Solid Bearing Protection Ring

    AEGIS SGR Bearing Protection Rings are designed to divert harmful bearing currents to ground. They do this by providing a highly reliable shaft grounding path. The AEGIS shaft grounding technology prevents bearing fluting and pitting damage when motors are controlled by variable frequency drives (VFD). The solid AEGIS rings are ideal to prevent premature bearing failures for any VFD-controlled motor.

    Features:
    • Fits shaft diameters of 1.811 to 1.855 inches
    • Can be mounted with bracket, press fit, or conductive epoxy
    • Quick and easy installation
    • Ships with mounting brackets, screws, and washers
