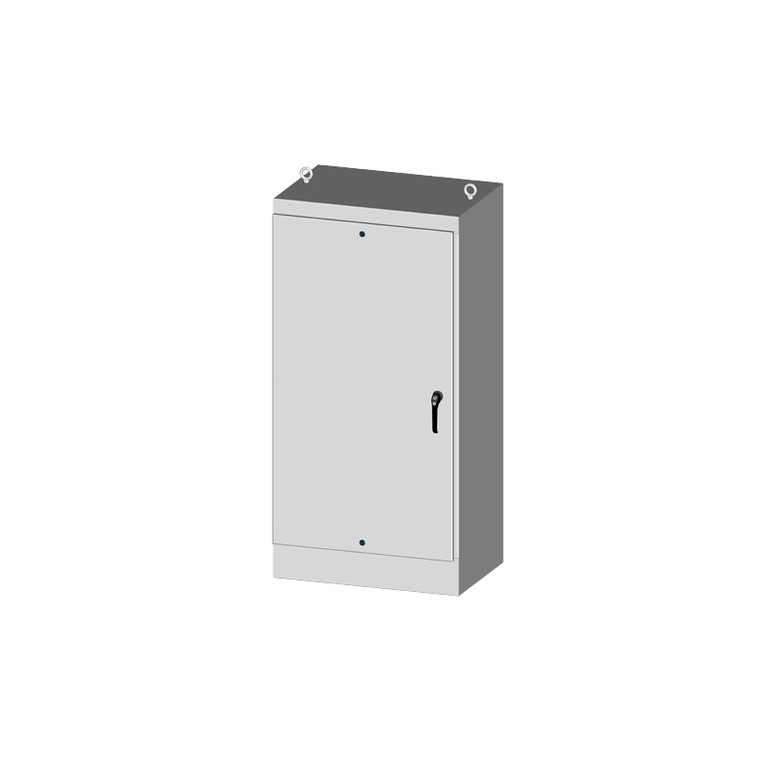

Saginaw NEMA 3R, 12, & 13 Industrial Control Enclosure, SCE-903620FS (SCE-903620FS)

Saginaw NEMA 3R, 12, & 13 Industrial Control Enclosure, SCE-903620FS (SCE-903620FS)

Brand:
SAGINAW
Model:
SCE-903620FS
Condition:
New
0 Customer Reviews
VFDs.com Guarantee Badge
Out Of Stock
Call for Price
Adding to cart… The item has been added
  • 0.104" carbon steel
  • Concealed hinge
  • Removable and interchangeable doors
  • Flange trough collar around all sides of door opening
  • Seams continuously welded and ground smooth, no holes or knockouts
  • Lifting eyes for easy handling
  • Black zinc die cast keylocking/padlocking handle
  • 3-point latching mechanism
  • Latch rods have ramp shoes for easier door closing
  • Removable print pocket provided on door
  • Oil resistant gasket.
  • Ground stud on door
  • Provisions for fluorescent light kit
  • Mounting channels welded horizontally on sides of interior body at top, bottom, and middle for mounting optional panels or rack mounting angles.
    • Write a Review

    Technical Specifications

    Product Information

    SAGINAW Series

    Saginaw Free-Standing Single-Door Enclosures

    Application

    Designed to house electrical controls, instruments and components in areas, which may be regularly hosed down or are in very wet or oily conditions. Provides protection from dust, dirt, oil and water.

    Construction

    Standard Features

    Drive Details

    Manufacturer
    Saginaw

    Model
    SCE-903620FS

    Condition
    New

    Industry Standards
    NEMA Types 3R, 12, & 13

    Enclosure Type
    Free-Standing Single-Door Enclosures

    Mounting Type
    Wall Mountable

    Construction
    0.104 in Carbon Steel

    Dimensions
    Height: 90.00 in
    Width: 36.00 in
    Depth: 20.00 in

    Download Brochure
