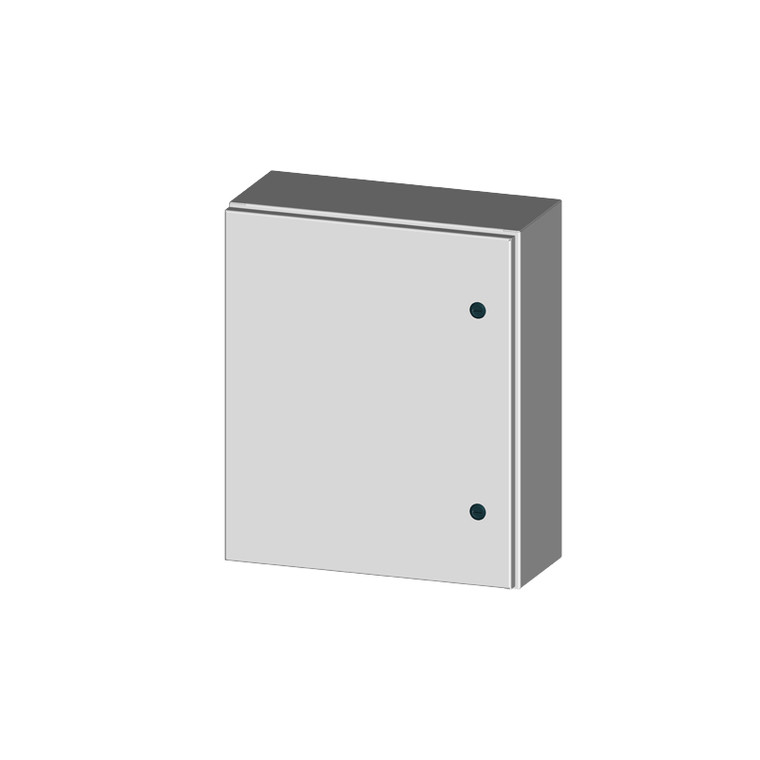

Saginaw NEMA 4, 12, & 13 Industrial Control Enclosure, SCE-48EL3616LP

Brand: SAGINAW
Model: SCE-48EL3616LP
Condition: New
Rating:
0% of 100

In stock
List Price $658.14 Online Price $526.99

Highlights

  • 0.075" carbon steel
  • Seems continuously welded and groud smooth
  • Flange trough collar around all sides of door opening
  • Oil-resistant gasket
  • Collar studs provided for mounting optional panels
  • Concealed hinge
  • Removable and interchangeable doors
  • Black quarter turn latches
  • Latches are opened or closed with a screwdriver
  • Mounting holes in back of enclosure
  • Mounting hardware, sealing washer and hole plug included
  • Removable print pocket
  • Ground studs on door and body.
  • Technical Specifications
    Series Enviroline
    Mounting Type Wall Mountable
    Enclosure Type Single Door
    Construction 0.075 in Carbon Steel
    Enclosure Rating UL Type 4, UL Type 12, UL Type 13
    Brand SAGINAW
    Product Condition New
    Model SCE-48EL3616LP
    Product Information

    SAGINAW Enviroline Series

    Saginaw Single-Door Enclosures

    Application

    Designed to house electrical and electronic controls, instruments and components. Provides protection from dust, oil and water. For outdoor application a drip shield is recommended.

    Construction

    Highlights

  • 0.075" carbon steel
  • Seems continuously welded and groud smooth
  • Flange trough collar around all sides of door opening
  • Oil-resistant gasket
  • Collar studs provided for mounting optional panels
  • Concealed hinge
  • Removable and interchangeable doors
  • Black quarter turn latches
  • Latches are opened or closed with a screwdriver
  • Mounting holes in back of enclosure
  • Mounting hardware, sealing washer and hole plug included
  • Removable print pocket
  • Ground studs on door and body.
  • Standard Features

    Drive Details

    Manufacturer
    Saginaw

    Model
    SCE-48EL3616LP

    Condition
    New

    Industry Standards
    NEMA Types 4, 12, & 13

    Enclosure Type
    Single-Door Enclosure

    Mounting Type
    Wall Mountable

    Construction
    0.075 in Carbon Steel

    Dimensions
    Height: 48.00 in
    Width: 36.00 in
    Depth: 16.00 in
