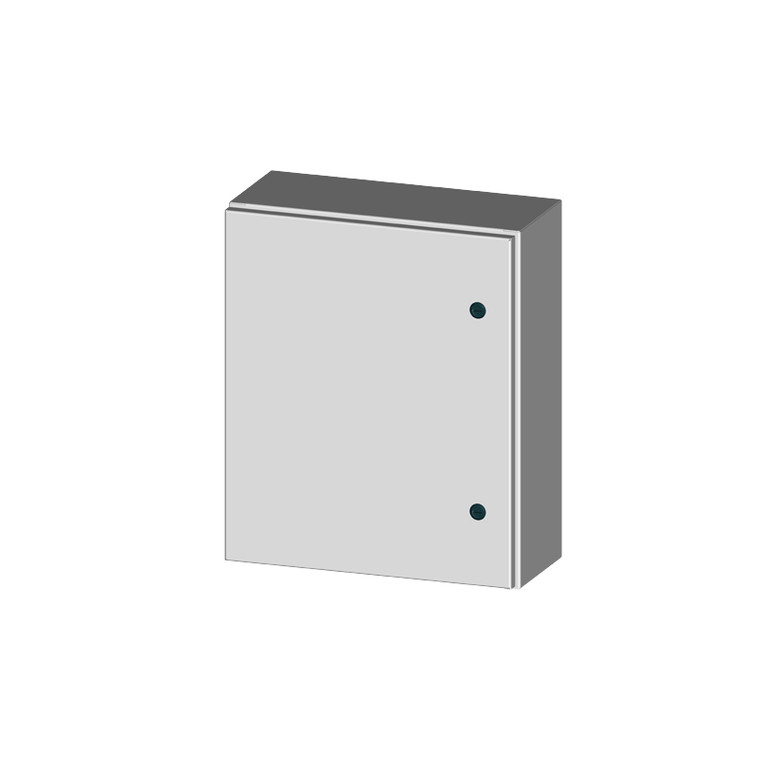

Saginaw NEMA 4, 12, & 13 Industrial Control Enclosure, SCE-20EL2408LP (SCE-20EL2408LP)

Saginaw NEMA 4, 12, & 13 Industrial Control Enclosure, SCE-20EL2408LP (SCE-20EL2408LP)

Brand:
SAGINAW
Model:
SCE-20EL2408LP
Condition:
New
0 Customer Reviews
VFDs.com Guarantee Badge
Out Of Stock
Call for Price
Adding to cart… The item has been added
  • 0.075" carbon steel
  • Seems continuously welded and groud smooth
  • Flange trough collar around all sides of door opening
  • Oil-resistant gasket
  • Collar studs provided for mounting optional panels
  • Concealed hinge
  • Removable and interchangeable doors
  • Black quarter turn latches
  • Latches are opened or closed with a screwdriver
  • Mounting holes in back of enclosure
  • Mounting hardware, sealing washer and hole plug included
  • Removable print pocket
  • Ground studs on door and body.
    • Write a Review

    Technical Specifications

    Product Information

    SAGINAW Enviroline Series

    Saginaw Single-Door Enclosures

    Application

    Designed to house electrical and electronic controls, instruments and components. Provides protection from dust, oil and water. For outdoor application a drip shield is recommended.

    Construction

    Standard Features

    Drive Details

    Manufacturer
    Saginaw

    Model
    SCE-20EL2408LP

    Condition
    New

    Industry Standards
    NEMA Types 4, 12, & 13

    Enclosure Type
    Single-Door Enclosure

    Mounting Type
    Wall Mountable

    Construction
    0.075 in Carbon Steel

    Dimensions
    Height: 20.00 in
    Width: 24.00 in
    Depth: 8.00 in
