Hostile Duty World Motor

  • US Motors (Nidec) logo Image coming soon

    US Motors (Nidec), AC Motor, HD5P2EC, 5 HP, 1800 RPM, Three Phase, 230/460 & 200/400 V, 60 , 50 Hz, 184TC (HD5P2EC)

    • Model:
      HD5P2EC
    • Brand:
      US Motors (Nidec)
    • Product Condition:
      New
    • Motor Type:
      Severe Duty
    • Horsepower Rating:
      5 HP
    • Synchronous RPM:
      1800 RPM
    • Frame Size:
      184TC
    • Rated Supply Voltage:
      230/460 & 200/400 V
    • Motor Enclosure Type:
      Totally Enclosed Fan Cooled (TEFC)
    • Motor Design Class:
      B
    • Full Load Torque:
      14.9
    • Rated Voltage:
      208 V
    • Rated Voltage:
      230 V
    • Rated Voltage:
      460 V
    • Phase:
      Three Phase
    • Service Factor:
      1.15
    • Insulation Class:
      F
    • Duty Cycle:
      Continuous
    • Efficiency:
      89.5%
    • Construction:
      Cast Iron
    • Bearing Type:
      6205-2Z-J/C3
    • Rated Input Frequency:
      60 Hz
    • Rated Input Frequency:
      50 Hz
    • Motor Full Load Amps:
      12.7/6.3 A
    • Weight:
      110.00 LBS
    Out Of Stock
    Call for Price
    Adding to cart… The item has been added
    VIEW DETAILS
  • US Motors (Nidec) logo Image coming soon

    US Motors (Nidec), AC Motor, HD5P1H, 5 HP, 3600 RPM, Three Phase, 200-208 V, 60 Hz, 184T (HD5P1H)

    • Model:
      HD5P1H
    • Brand:
      US Motors (Nidec)
    • Product Condition:
      New
    • Motor Type:
      Severe Duty
    • Horsepower Rating:
      5 HP
    • Synchronous RPM:
      3600 RPM
    • Rated RPM:
      3525 RPM
    • Frame Size:
      184T
    • Rated Supply Voltage:
      200-208 V
    • Motor Enclosure Type:
      Totally Enclosed Fan Cooled (TEFC)
    • Motor Design Class:
      B
    • Full Load Torque:
      7.4
    • Rated Voltage:
      208 V
    • Phase:
      Three Phase
    • Service Factor:
      1.15
    • Insulation Class:
      F
    • Duty Cycle:
      Continuous
    • Efficiency:
      88.5%
    • Construction:
      Cast Iron
    • Bearing Type:
      6205-2Z-J/C3
    • Rated Input Frequency:
      60 Hz
    • Motor Full Load Amps:
      14.1/13.8 A
    • Weight:
      90.00 LBS
    Out Of Stock
    Call for Price
    Adding to cart… The item has been added
    VIEW DETAILS
  • US Motors (Nidec) logo Image coming soon

    US Motors (Nidec), AC Motor, HD5P1G, 5 HP, 3600 RPM, Three Phase, 575 V, 60 Hz, 184T (HD5P1G)

    • Model:
      HD5P1G
    • Brand:
      US Motors (Nidec)
    • Product Condition:
      New
    • Motor Type:
      Severe Duty
    • Horsepower Rating:
      5 HP
    • Synchronous RPM:
      3600 RPM
    • Rated RPM:
      3525 RPM
    • Frame Size:
      184T
    • Rated Supply Voltage:
      575 V
    • Motor Enclosure Type:
      Totally Enclosed Fan Cooled (TEFC)
    • Motor Design Class:
      B
    • Full Load Torque:
      7.4
    • Rated Voltage:
      575 V
    • Phase:
      Three Phase
    • Service Factor:
      1.15
    • Insulation Class:
      F
    • Duty Cycle:
      Continuous
    • Efficiency:
      88.5%
    • Construction:
      Cast Iron
    • Bearing Type:
      6205-2Z-J/C3
    • Rated Input Frequency:
      60 Hz
    • Motor Full Load Amps:
      4.9 A
    • Weight:
      90.00 LBS
    Out Of Stock
    Call for Price
    Adding to cart… The item has been added
    VIEW DETAILS
  • US Motors (Nidec) logo Image coming soon

    US Motors (Nidec), AC Motor, HD5P1EC, 5 HP, 3600 RPM, Three Phase, 230/460 & 200/400 V, 60 , 50 Hz, 184TC (HD5P1EC)

    • Model:
      HD5P1EC
    • Brand:
      US Motors (Nidec)
    • Product Condition:
      New
    • Motor Type:
      Severe Duty
    • Horsepower Rating:
      5 HP
    • Synchronous RPM:
      3600 RPM
    • Frame Size:
      184TC
    • Rated Supply Voltage:
      230/460 & 200/400 V
    • Motor Enclosure Type:
      Totally Enclosed Fan Cooled (TEFC)
    • Motor Design Class:
      B
    • Full Load Torque:
      7.5
    • Rated Voltage:
      208 V
    • Rated Voltage:
      230 V
    • Rated Voltage:
      460 V
    • Phase:
      Three Phase
    • Service Factor:
      1.15
    • Insulation Class:
      F
    • Duty Cycle:
      Continuous
    • Efficiency:
      88.5%
    • Construction:
      Cast Iron
    • Bearing Type:
      6205-2Z-J/C3
    • Rated Input Frequency:
      60 Hz
    • Rated Input Frequency:
      50 Hz
    • Motor Full Load Amps:
      12.3/6.1 A
    • Weight:
      90.00 LBS
    Out Of Stock
    Call for Price
    Adding to cart… The item has been added
    VIEW DETAILS
  • US Motors (Nidec) logo Image coming soon

    US Motors (Nidec), AC Motor, HD5P1E, 5 HP, 3600 RPM, Three Phase, 230/460 & 200/400 V, 60 , 50 Hz, 184T (HD5P1E)

    • Model:
      HD5P1E
    • Brand:
      US Motors (Nidec)
    • Product Condition:
      New
    • Motor Type:
      Severe Duty
    • Horsepower Rating:
      5 HP
    • Synchronous RPM:
      3600 RPM
    • Frame Size:
      184T
    • Rated Supply Voltage:
      230/460 & 200/400 V
    • Motor Enclosure Type:
      Totally Enclosed Fan Cooled (TEFC)
    • Motor Design Class:
      B
    • Full Load Torque:
      7.5
    • Rated Voltage:
      208 V
    • Rated Voltage:
      230 V
    • Rated Voltage:
      460 V
    • Phase:
      Three Phase
    • Service Factor:
      1.15
    • Insulation Class:
      F
    • Duty Cycle:
      Continuous
    • Efficiency:
      88.5%
    • Construction:
      Cast Iron
    • Bearing Type:
      6205-2Z-J/C3
    • Rated Input Frequency:
      60 Hz
    • Rated Input Frequency:
      50 Hz
    • Motor Full Load Amps:
      12.3/6.1 A
    • Weight:
      90.00 LBS
    Out Of Stock
    Call for Price
    Adding to cart… The item has been added
    VIEW DETAILS
  • US Motors (Nidec) logo Image coming soon

    US Motors (Nidec), AC Motor, HD50V3B, 50 HP, 1200 RPM, Three Phase, 230/460 V, 60 Hz, 365T (HD50V3B)

    • Model:
      HD50V3B
    • Brand:
      US Motors (Nidec)
    • Product Condition:
      New
    • Motor Type:
      General Purpose
    • Horsepower Rating:
      50 HP
    • Synchronous RPM:
      1200 RPM
    • Rated RPM:
      1190 RPM
    • Frame Size:
      365T
    • Rated Supply Voltage:
      230/460 V
    • Motor Enclosure Type:
      Totally Enclosed Fan Cooled (TEFC)
    • Motor Design Class:
      B
    • Full Load Torque:
      221
    • Rated Voltage:
      230 V
    • Rated Voltage:
      460 V
    • Phase:
      Three Phase
    • Service Factor:
      1.15
    • Insulation Class:
      F
    • Duty Cycle:
      Continuous
    • Efficiency:
      94.1%
    • Construction:
      Cast Iron
    • C Dimension:
      30.5
    • Bearing Type:
      6213-2Z-J/C3
    • Rated Input Frequency:
      60 Hz
    • Motor Full Load Amps:
      117/59 A
    • Weight:
      680.00 LBS
    Out Of Stock
    Call for Price
    Adding to cart… The item has been added
    VIEW DETAILS
  • US Motors (Nidec) logo US Motors (Nidec), AC Motor, HD50V2B, 50 HP, 1800 RPM, Three Phase, 230/460 V, 60 Hz, 326T (HD50V2B)

    US Motors (Nidec), AC Motor, HD50V2B, 50 HP, 1800 RPM, Three Phase, 230/460 V, 60 Hz, 326T (HD50V2B)

    • Model:
      HD50V2B
    • Brand:
      US Motors (Nidec)
    • Product Condition:
      New
    • Motor Type:
      General Purpose
    • Horsepower Rating:
      50 HP
    • Synchronous RPM:
      1800 RPM
    • Rated RPM:
      1780 RPM
    • Frame Size:
      326T
    • Rated Supply Voltage:
      230/460 V
    • Motor Enclosure Type:
      Totally Enclosed Fan Cooled (TEFC)
    • Motor Design Class:
      B
    • Full Load Torque:
      147.7
    • Rated Voltage:
      230 V
    • Rated Voltage:
      460 V
    • Phase:
      Three Phase
    • Service Factor:
      1.15
    • Insulation Class:
      F
    • Duty Cycle:
      Continuous
    • Efficiency:
      94.5%
    • Construction:
      Cast Iron
    • Bearing Type:
      6211-2Z-J/C3
    • Rated Input Frequency:
      60 Hz
    • Motor Full Load Amps:
      112/56 A
    • Weight:
      550.00 LBS
    Out Of Stock
    Call for Price
    Adding to cart… The item has been added
    VIEW DETAILS
  • US Motors (Nidec) logo US Motors (Nidec), AC Motor, HD50V1BS, 50 HP, 3600 RPM, Three Phase, 230/460 V, 60 Hz, 326TS (HD50V1BS)

    US Motors (Nidec), AC Motor, HD50V1BS, 50 HP, 3600 RPM, Three Phase, 230/460 V, 60 Hz, 326TS (HD50V1BS)

    • Model:
      HD50V1BS
    • Brand:
      US Motors (Nidec)
    • Product Condition:
      New
    • Motor Type:
      General Purpose
    • Horsepower Rating:
      50 HP
    • Synchronous RPM:
      3600 RPM
    • Rated RPM:
      3560 RPM
    • Frame Size:
      326TS
    • Rated Supply Voltage:
      230/460 V
    • Motor Enclosure Type:
      Totally Enclosed Fan Cooled (TEFC)
    • Motor Design Class:
      B
    • Full Load Torque:
      73.8
    • Rated Voltage:
      230 V
    • Rated Voltage:
      460 V
    • Phase:
      Three Phase
    • Service Factor:
      1.15
    • Insulation Class:
      F
    • Duty Cycle:
      Continuous
    • Efficiency:
      93%
    • Construction:
      Cast Iron
    • Bearing Type:
      6211-2Z-J/C3
    • Rated Input Frequency:
      60 Hz
    • Motor Full Load Amps:
      112/56 A
    • Weight:
      480.00 LBS
    Out Of Stock
    Call for Price
    Adding to cart… The item has been added
    VIEW DETAILS
  • US Motors (Nidec) logo Image coming soon

    US Motors (Nidec), AC Motor, HD50P3H, 50 HP, 1200 RPM, Three Phase, 200-208 V, 60 Hz, 365T (HD50P3H)

    • Model:
      HD50P3H
    • Brand:
      US Motors (Nidec)
    • Product Condition:
      New
    • Motor Type:
      Severe Duty
    • Horsepower Rating:
      50 HP
    • Synchronous RPM:
      1200 RPM
    • Rated RPM:
      1190 RPM
    • Frame Size:
      365T
    • Rated Supply Voltage:
      200-208 V
    • Motor Enclosure Type:
      Totally Enclosed Fan Cooled (TEFC)
    • Motor Design Class:
      B
    • Full Load Torque:
      220.9
    • Rated Voltage:
      208 V
    • Phase:
      Three Phase
    • Service Factor:
      1.15
    • Insulation Class:
      F
    • Duty Cycle:
      Continuous
    • Efficiency:
      94.1%
    • Construction:
      Cast Iron
    • Bearing Type:
      6213-2Z-J/C3
    • Rated Input Frequency:
      60 Hz
    • Motor Full Load Amps:
      134/130 A
    • Weight:
      680.00 LBS
    Out Of Stock
    Call for Price
    Adding to cart… The item has been added
    VIEW DETAILS
  • US Motors (Nidec) logo Image coming soon

    US Motors (Nidec), AC Motor, HD50P3G, 50 HP, 1200 RPM, Three Phase, 575 V, 60 Hz, 365T (HD50P3G)

    • Model:
      HD50P3G
    • Brand:
      US Motors (Nidec)
    • Product Condition:
      New
    • Motor Type:
      Severe Duty
    • Horsepower Rating:
      50 HP
    • Synchronous RPM:
      1200 RPM
    • Rated RPM:
      1190 RPM
    • Frame Size:
      365T
    • Rated Supply Voltage:
      575 V
    • Motor Enclosure Type:
      Totally Enclosed Fan Cooled (TEFC)
    • Motor Design Class:
      B
    • Full Load Torque:
      221
    • Rated Voltage:
      575 V
    • Phase:
      Three Phase
    • Service Factor:
      1.15
    • Insulation Class:
      F
    • Duty Cycle:
      Continuous
    • Efficiency:
      94.1%
    • Construction:
      Cast Iron
    • Bearing Type:
      6213-2Z-J/C3
    • Rated Input Frequency:
      60 Hz
    • Motor Full Load Amps:
      47 A
    • Weight:
      680.00 LBS
    Out Of Stock
    Call for Price
    Adding to cart… The item has been added
    VIEW DETAILS
  • US Motors (Nidec) logo Image coming soon

    US Motors (Nidec), AC Motor, HD50P3E, 50 HP, 1200 RPM, Three Phase, 230/460 & 200/400 V, 60 , 50 Hz, 365T (HD50P3E)

    • Model:
      HD50P3E
    • Brand:
      US Motors (Nidec)
    • Product Condition:
      New
    • Motor Type:
      Severe Duty
    • Horsepower Rating:
      50 HP
    • Synchronous RPM:
      1200 RPM
    • Frame Size:
      365T
    • Rated Supply Voltage:
      230/460 & 200/400 V
    • Motor Enclosure Type:
      Totally Enclosed Fan Cooled (TEFC)
    • Motor Design Class:
      B
    • Full Load Torque:
      221
    • Rated Voltage:
      208 V
    • Rated Voltage:
      230 V
    • Rated Voltage:
      460 V
    • Phase:
      Three Phase
    • Service Factor:
      1.15
    • Insulation Class:
      F
    • Duty Cycle:
      Continuous
    • Efficiency:
      94.1%
    • Construction:
      Cast Iron
    • Bearing Type:
      6213-2Z-J/C3
    • Rated Input Frequency:
      60 Hz
    • Rated Input Frequency:
      50 Hz
    • Motor Full Load Amps:
      117/59 A
    • Weight:
      680.00 LBS
    Out Of Stock
    Call for Price
    Adding to cart… The item has been added
    VIEW DETAILS

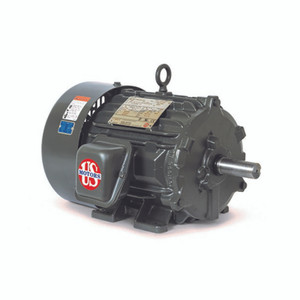

  • US Motors (Nidec) logo US Motors (Nidec), AC Motor, HD50P2H, 50 HP, 1800 RPM, Three Phase, 200-208 V, 60 Hz, 326T (HD50P2H)

    US Motors (Nidec), AC Motor, HD50P2H, 50 HP, 1800 RPM, Three Phase, 200-208 V, 60 Hz, 326T (HD50P2H)

    • Model:
      HD50P2H
    • Brand:
      US Motors (Nidec)
    • Product Condition:
      New
    • Motor Type:
      Severe Duty
    • Horsepower Rating:
      50 HP
    • Synchronous RPM:
      1800 RPM
    • Rated RPM:
      1780 RPM
    • Frame Size:
      326T
    • Rated Supply Voltage:
      200-208 V
    • Motor Enclosure Type:
      Totally Enclosed Fan Cooled (TEFC)
    • Motor Design Class:
      B
    • Full Load Torque:
      147.4
    • Rated Voltage:
      208 V
    • Phase:
      Three Phase
    • Service Factor:
      1.15
    • Insulation Class:
      F
    • Duty Cycle:
      Continuous
    • Efficiency:
      94.5%
    • Construction:
      Cast Iron
    • Bearing Type:
      6211-2Z-J/C3
    • Rated Input Frequency:
      60 Hz
    • Motor Full Load Amps:
      128/123 A
    • Weight:
      550.00 LBS
    Out Of Stock
    Call for Price
    Adding to cart… The item has been added
    VIEW DETAILS
