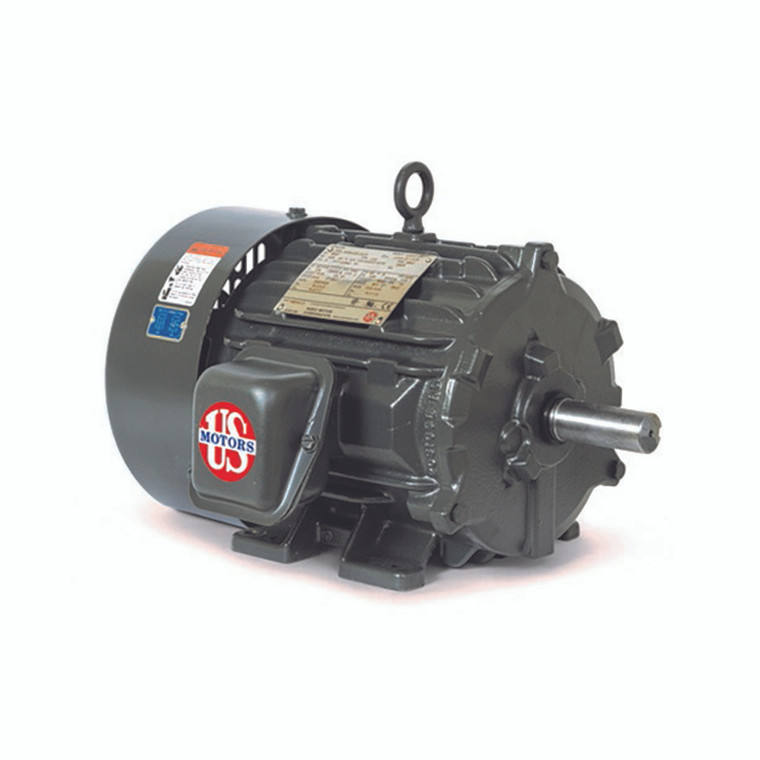

US Motors (Nidec), AC Motor, HD5P3E, 5 HP, 1200 RPM, Three Phase, 230/460 & 200/400 V, 60 , 50 Hz, 215T (HD5P3E)

US Motors (Nidec), AC Motor, HD5P3E, 5 HP, 1200 RPM, Three Phase, 230/460 & 200/400 V, 60 , 50 Hz, 215T (HD5P3E)

Brand:
US Motors (Nidec)
Model:
HD5P3E
Condition:
New
0 Customer Reviews
VFDs.com Guarantee Badge
Out Of Stock
Call for Price
Adding to cart… The item has been added
Write a Review

Technical Specifications

Product Information

US Motors (Nidec) Series

5 HP, 1175 & 970 RPM, HD5P3E, 230/460 & 200/400 V, 60 & 50 HZ, 215T
Download Brochure
Download Manual

World Motor Hostile Duty

APPLICATIONS:

For pulp & paper plants, saw mills, mines, foundries, chemical plants, waste management facilities, and other process-related industries requiring

protection within harsh operating conditions.

FEATURES:

  • Class F Insulation, Class B Rise At Full Load On 60 Hertz Sine Wave Power
  • Corrosion Resistant Mill & Chemical Duty Paint
  • Cast Iron Frame, Cast Iron End Brackets
  • Stainless Steel Nameplate (with CE Mark) & Zinc Plated Hardware
  • IP54 Protection
  • Dual Voltage 230/460 Volts (1-100 HP)
  • 40°C Ambient, NEMA®† Design B Performance On 60 Hz Sine Wave Power
  • Regreasable Ball Bearings 250 Frame & Up, Lifting Provisions
  • Double Shielded Bearings 140-360, Open On 400-440
  • Pulley End Clamping Plate
  • 1.15 Service Factor @ 60 Hz
  • Suitable for 20:1 (3-60hz) Variable Torque; 5:1 (12-60hz) Constant Torque On Inverter Power
  • Steel Fan Cover & Conduit Box
  • Field Convertible To F2 Mounting
  • Condensation Drains With Plastic Plugs
  • Conversion Kits: All Cast Iron Upgrade, C&D Flanges, Canopy Kits
  • Self-Certified Class I, Division 2, Groups A, B, C, & D
