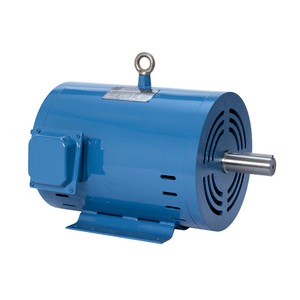

Galt Electric ODP Motor GDP0600-2-326TS-K, 60HP, 3600RPM, 3-Phase, 208, 230, 460V, 60Hz, 326T (GDP0600-2-326TS-K)

Galt Electric ODP Motor GDP0600-2-326TS-K, 60HP, 3600RPM, 3-Phase, 208, 230, 460V, 60Hz, 326T (GDP0600-2-326TS-K)

Brand:
GALT ELECTRIC
Model:
GDP0600-2-326TS-K
Condition:
New
0 Customer Reviews
VFDs.com Guarantee Badge
In Stock
List Price:  $5,376.92
Online Price: $2,688.46
Adding to cart… The item has been added
  • Better Fit and finish
  • Oversized bearings
  • Sealed bearings up to 215T size
  • Re-greaseable bearings from 254T and above
  • Quality castings
  • 1.25 Service factor (Up to 100 HP)
  • 1.15 Service factor (125 HP & above)
  • Double drilled feet for most ratings
  • Premium efficiency or above
  • Fully gasketed junction box (90? increment rotatable)
  • Lead support gasketing
  • C-faces available
  • Mounting in any direction
  • Inverter duty insulation system with VPI
  • AISI 4140 shaft material
  • Shaft grounding protection available
  • Standard F1 assembly (F2 available cast iron only)
  • Easy to read stainless steel nameplate

Manufacturer's Website
www.galtelectric.com

Free shipping over $50*
Write a Review

Technical Specifications

Model:
GDP0600-2-326TS-K
Brand:
GALT ELECTRIC
Product Condition:
New
Warranty:
3 Years
Full Load Torque:
88.55
Service Factor:
1.25
Insulation Class:
F
Duty Cycle:
Continuous
Power Factor:
0.91
Efficiency:
93.6%
C Dimension:
25.6
Phase:
Three Phase
Horsepower Rating:
60 HP
Synchronous RPM:
3600 RPM
Frame Size:
326T
Motor Enclosure Type:
Open Drip Proof (ODP)
Rated Voltage:
208 V
Rated Voltage:
230 V
Rated Voltage:
460 V
Construction:
Cast Iron
Rated Input Frequency:
60 Hz
Rated Amps:
66 A

Product Information

GALT ELECTRIC GDP Series

MOTOR, 60HP, 3600RPM, ODP, 326TS

Highlights

  • Better Fit and finish
  • Oversized bearings
  • Sealed bearings up to 215T size
  • Re-greaseable bearings from 254T and above
  • Quality castings
  • 1.25 Service factor (Up to 100 HP)
  • 1.15 Service factor (125 HP & above)
  • Double drilled feet for most ratings
  • Premium efficiency or above
  • Fully gasketed junction box (90? increment rotatable)
  • Lead support gasketing
  • C-faces available
  • Mounting in any direction
  • Inverter duty insulation system with VPI
  • AISI 4140 shaft material
  • Shaft grounding protection available
  • Standard F1 assembly (F2 available cast iron only)
  • Easy to read stainless steel nameplate

Manufacturer's Website
www.galtelectric.com

Download Brochure
