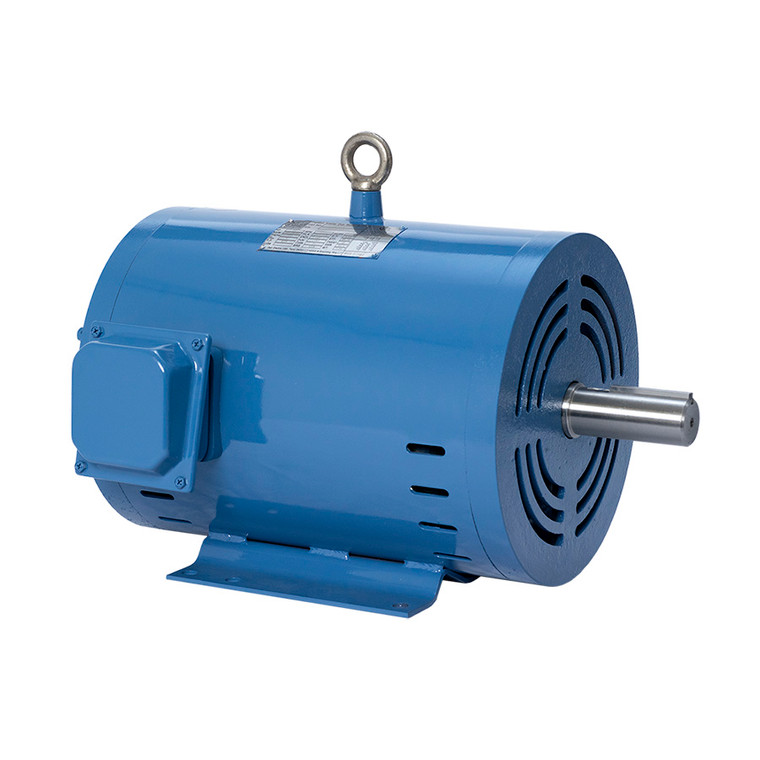

Galt Electric ODP Motor GDP02506-324T-K, 25HP, 1200RPM, 3-Phase, 208, 230, 460V, 60Hz, 324T (GDP0250-6-324T-K)

Galt Electric ODP Motor GDP02506-324T-K, 25HP, 1200RPM, 3-Phase, 208, 230, 460V, 60Hz, 324T (GDP0250-6-324T-K)

Brand:
GALT ELECTRIC
Model:
GDP0250-6-324T-K
Condition:
New
0 Customer Reviews
VFDs.com Guarantee Badge
Out Of Stock
$4,124.92
Online Price: $2,062.46
Adding to cart… The item has been added
  • Better Fit and finish
  • Oversized bearings
  • Sealed bearings up to 215T size
  • Re-greaseable bearings from 254T and above
  • Quality castings
  • 1.25 Service factor (Up to 100 HP)
  • 1.15 Service factor (125 HP & above)
  • Double drilled feet for most ratings
  • Premium efficiency or above
  • Fully gasketed junction box (90? increment rotatable)
  • Lead support gasketing
  • C-faces available
  • Mounting in any direction
  • Inverter duty insulation system with VPI
  • AISI 4140 shaft material
  • Shaft grounding protection available
  • Standard F1 assembly (F2 available cast iron only)
  • Easy to read stainless steel nameplate

Manufacturer's Website

https://www.galtelectric.com

Write a Review

Technical Specifications

Product Information

GALT ELECTRIC GDP Series

MOTOR, 25HP, 1200RPM, ODP, 324T
