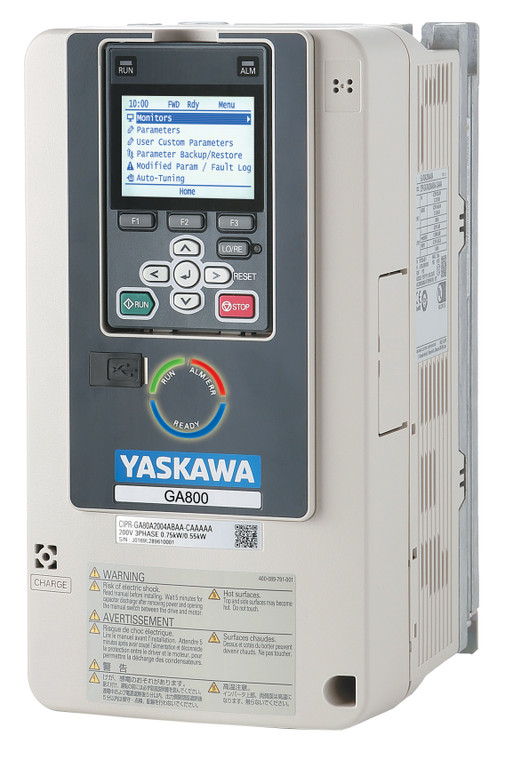

500HP & 450HP 460V Yaskawa GA800 VFD, Inverter, AC Drive GA80U4605ABM
Brand: YASKAWA
Model: GA80U4605ABM
Condition: New
Kit Includes:
Highlights
- High resolution multi-language display with Startup Wizards and Data-Logging.
- Bluetooth and DriveWizard Mobile for convenient and easy interaction.
- DriveWizard Desktop for comprehensive configuration and monitoring.
- DriveWorks EZ (embedded function blocks) provides extra flexibility, otherwise accomplished in a separate controller.
- Closed or open loop vector control for outstanding regulation and torque production.
- Fast acting motor control functions provide near tripless operation.
- Popular network connections provide robust control and monitoring with system controllers.
- Embedded Auxiliary Control Power Input (24 V) maximizes production time and efficiency by maintaining network communication while main power is removed.
- Embedded Safe Torque Off minimizes downtime for applications requiring occasional intervention (SIL CL3, PLe, Category 3).
- Integrated DC Reactor (30 HP and larger) improves power quality and compatibility.
- Integrated 12 Pulse version provides a cost-effective solution for low harmonics.
- Integrated Brake Transistor (up to 125 HP ND) for cost effective heavy braking.
- Standard conformal coating and Type 12 versions help resist contamination.
- Made with RoHS compliant materials for environmental compliance.
Compare with similar items
This Item
|
|
|
| 500HP & 450HP 460V Yaskawa GA800 VFD, Inverter, AC Drive GA80U4605ABM | 450HP 460V Mitsubishi F800E VFD, Inverter, AC Drive FR-F840-06100-E3U6 | |
| Ratings | ||
| Price |
List Price
$37,711.00
Online Price
$24,512.15
|
List Price
$19,850.00
Online Price
$14,887.50
|
| Free Shipping |
No |
Yes |
| Series |
GA800
|
F800E
|
| Rated Amps |
605 A, 675 A
|
547 A, 610 A
|
| Enclosure Rating |
IP 20
|
IP 00
|
| Frame Size |
|
N
|
| Brand |
YASKAWA
|
MITSUBISHI
|
| Horsepower Rating |
450 HP, 500 HP
|
450 HP, 500 HP
|
| Rated Voltage |
460 V
|
460 V
|
| Model |
GA80U4605ABM
|
FR-F840-06100-E3U6
|
Technical Specifications
| Phase Rating | 3 Phase Input - 3 Phase Output |
|---|---|
| Rated Input Frequency | 50 Hz |
| Constant Torque / Variable Torque | Variable Torque |
| Series | GA800 |
| Phase | Three Phase |
| Rated Amps | 605 A, 675 A |
| Enclosure Rating | IP 20 |
| Brand | YASKAWA |
| Horsepower Rating | 450 HP, 500 HP |
| Rated Voltage | 460 V |
| Product Condition | New |
| Output Voltage | 460 V |
| Output Amperage Rating | 675 A |
| HP Rating @ 110% OL | 500 HP |
| HP Rating @ 150% OL | 450 HP |
| Amp Rating @ 110% OL | 675 A |
| Amp Rating @ 150% OL | 605 A |
| Model | GA80U4605ABM |
| Height | 44.72 in |
| Width | 20.1 in |
| Depth | 18.9 in |
Product Information
YASKAWA GA800 Series
The GA800 drive provides the ultimate combination of power, ease of use, flexibility, and performance. Enjoy effortless setup with a high-resolution display or Bluetooth connection to your mobile device while using Yaskawa's free DriveWizard Mobile. Control your simple or complex applications connected to networks or discrete / analog signals. Combine all this with modern safety features and a variety of environmental solutions, and you will have to look no further than GA800 for all your variable speed needs.
Highlights
- High resolution multi-language display with Startup Wizards and Data-Logging.
- Bluetooth and DriveWizard Mobile for convenient and easy interaction.
- DriveWizard Desktop for comprehensive configuration and monitoring.
- DriveWorks EZ (embedded function blocks) provides extra flexibility, otherwise accomplished in a separate controller.
- Closed or open loop vector control for outstanding regulation and torque production.
- Fast acting motor control functions provide near tripless operation.
- Popular network connections provide robust control and monitoring with system controllers.
- Embedded Auxiliary Control Power Input (24 V) maximizes production time and efficiency by maintaining network communication while main power is removed.
- Embedded Safe Torque Off minimizes downtime for applications requiring occasional intervention (SIL CL3, PLe, Category 3).
- Integrated DC Reactor (30 HP and larger) improves power quality and compatibility.
- Integrated 12 Pulse version provides a cost-effective solution for low harmonics.
- Integrated Brake Transistor (up to 125 HP ND) for cost effective heavy braking.
- Standard conformal coating and Type 12 versions help resist contamination.
- Made with RoHS compliant materials for environmental compliance.
