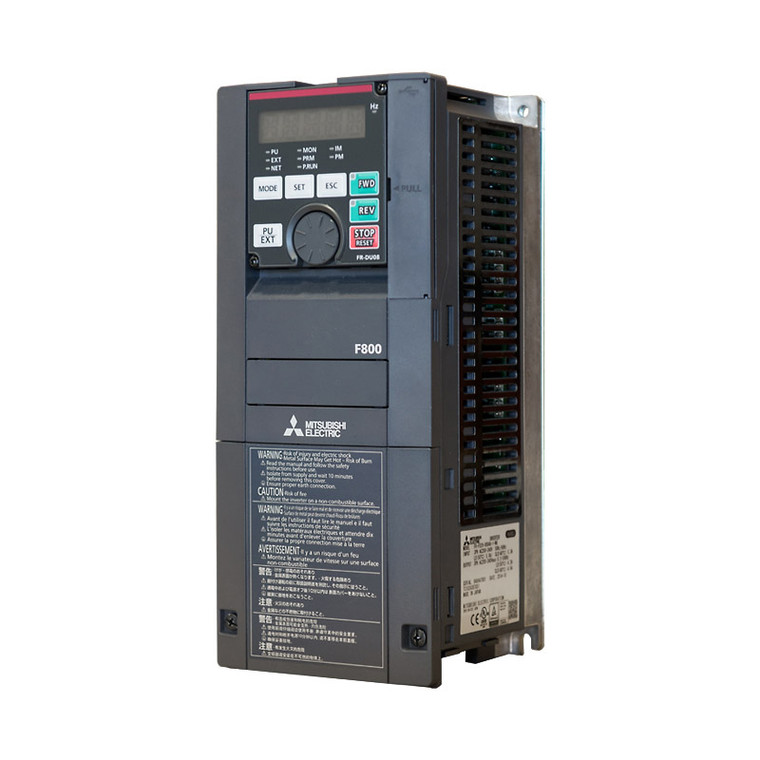

3HP 230V Mitsubishi F800E VFD, Inverter, AC Drive FR-F820-00105-E3N6
Brand: MITSUBISHI
Model: FR-F820-00105-E3N6
Condition: New
Kit Includes:
Highlights
- Optimum excitation control for reducing energy consumption - We have adopted and perfected optimum excitation control to ensure that the energy-saving effects are realized during constant torque as well as during the motor’s acceleration/deceleration operations
- Ethernet Communications as Standard - Communicate with Modbus TCP/IP or CC-Link IE Field Basic communications networks at a speed of 100Mbps without the need for an extra option card.
- Automatic IP Address Detection - Automatically detect the IP address of all connected drives, quickly enabling connection and programming using FR-Configurator2 software.
- Remote Operation - Communicate with a drive remotely for commissioning, monitoring or troubleshooting anytime from anywhere.
- CC-Link IE Field Network Basic - Fast and dependable connection to Mitsubishi Electric PLCs, servos, and robots through the CC-Link IE Field basic system for a complete factory solution.
- Multiple Protocol Capability - Network option cards offer connection to other drive based networks and a higher level information system.
- Drive to Drive Communications - Utilize the internal PLC to communicate without a master PLC controller allowing the drives to work together as a team.
- Reduced Cost - Standard Ethernet connectivity without add-on modules.
Compare with similar items
This Item
|
|
|
|
|
|
|
| 3HP 230V Mitsubishi F800E VFD, Inverter, AC Drive FR-F820-00105-E3N6 | 3HP 230V Galt Electric G200 VFD, Inverter, AC Drive G22S0-00100UL-02 | 3HP 230V Galt Electric G200 VFD, Inverter, AC Drive G220-00100UL-02 | 3HP 230V Galt Electric G500 VFD, Inverter, AC Drive G520-00100UL-01 | 3HP 230V Galt Electric G300 VFD, Inverter, AC Drive G320-00100UL-01 | 3HP 230V Delta VFD-M VFD, Inverter, AC Drive VFD022M21A | |
| Ratings | ||||||
| Price |
List Price
$1,130.00
Online Price
$847.50
|
$207.00
|
$229.00
|
$446.00
|
$405.00
|
$304.00
|
| Free Shipping |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
| Series |
F800E
|
G200
|
G200
|
G500
|
G300
|
VFD-M
|
| Rated Amps |
9.6 A, 11 A
|
10 A
|
11 A
|
10 A
|
10 A
|
10 A
|
| Enclosure Rating |
UL Type 1
|
IP 20
|
IP 20
|
IP 20
|
IP 20
|
IP 20
|
| Frame Size |
C
|
|
|
|
|
|
| Brand |
MITSUBISHI
|
GALT ELECTRIC
|
GALT ELECTRIC
|
GALT ELECTRIC
|
GALT ELECTRIC
|
Delta
|
| Horsepower Rating |
3 HP
|
3 HP
|
3 HP
|
3 HP
|
3 HP
|
3 HP
|
| Rated Voltage |
230 V
|
230 V
|
230 V
|
230 V
|
230 V
|
230 V
|
| Model |
FR-F820-00105-E3N6
|
G22S0-00100UL-02
|
G22000100UL02
|
G520-00100UL-01
|
G320-00100UL-01
|
VFD022M21A
|
Technical Specifications
| Phase Rating | 3 Phase Input - 3 Phase Output |
|---|---|
| Rated Input Frequency | 60 Hz |
| Constant Torque / Variable Torque | Variable Torque |
| Series | F800E |
| Phase | Three Phase |
| Rated Amps | 9.6 A, 11 A |
| Enclosure Rating | UL Type 1 |
| Frame Size | C |
| Brand | MITSUBISHI |
| Horsepower Rating | 3 HP |
| Rated Voltage | 230 V |
| Product Condition | New |
| Communication Protocol | Modbus TCP/IP, CC-Link IE |
| Output Voltage | 230 V |
| Output Amperage Rating | 11 A |
| HP Rating @ 110% OL | 3 HP |
| HP Rating @ 120% OL | 3 HP |
| Amp Rating @ 110% OL | 11 A |
| Amp Rating @ 120% OL | 9.6 A |
| Model | FR-F820-00105-E3N6 |
| Height | 12.52 in |
| Width | 5.91 in |
| Depth | 5.57 in |
| Warranty | 1 Year |
Product Information
MITSUBISHI F800E Series
FR-F800-E Series with Built-in Ethernet Communication
The FR-F800-E is a pump and fan control VFD that combines performance, accuracy and reliability with embedded Ethernet based communications to enhance overall system flexibility. With 100Mbps Ethernet TCP/IP and BACnet/IP connectivity as the standard, the FR-F800-E provides an increased ability for remote system monitoring, parameter adjustments and easy integration into existing network environments.
**FR-F800-E Series Drives Have Removed RS485 Terminals**
Highlights
- Optimum excitation control for reducing energy consumption - We have adopted and perfected optimum excitation control to ensure that the energy-saving effects are realized during constant torque as well as during the motor’s acceleration/deceleration operations
- Ethernet Communications as Standard - Communicate with Modbus TCP/IP or CC-Link IE Field Basic communications networks at a speed of 100Mbps without the need for an extra option card.
- Automatic IP Address Detection - Automatically detect the IP address of all connected drives, quickly enabling connection and programming using FR-Configurator2 software.
- Remote Operation - Communicate with a drive remotely for commissioning, monitoring or troubleshooting anytime from anywhere.
- CC-Link IE Field Network Basic - Fast and dependable connection to Mitsubishi Electric PLCs, servos, and robots through the CC-Link IE Field basic system for a complete factory solution.
- Multiple Protocol Capability - Network option cards offer connection to other drive based networks and a higher level information system.
- Drive to Drive Communications - Utilize the internal PLC to communicate without a master PLC controller allowing the drives to work together as a team.
- Reduced Cost - Standard Ethernet connectivity without add-on modules.
