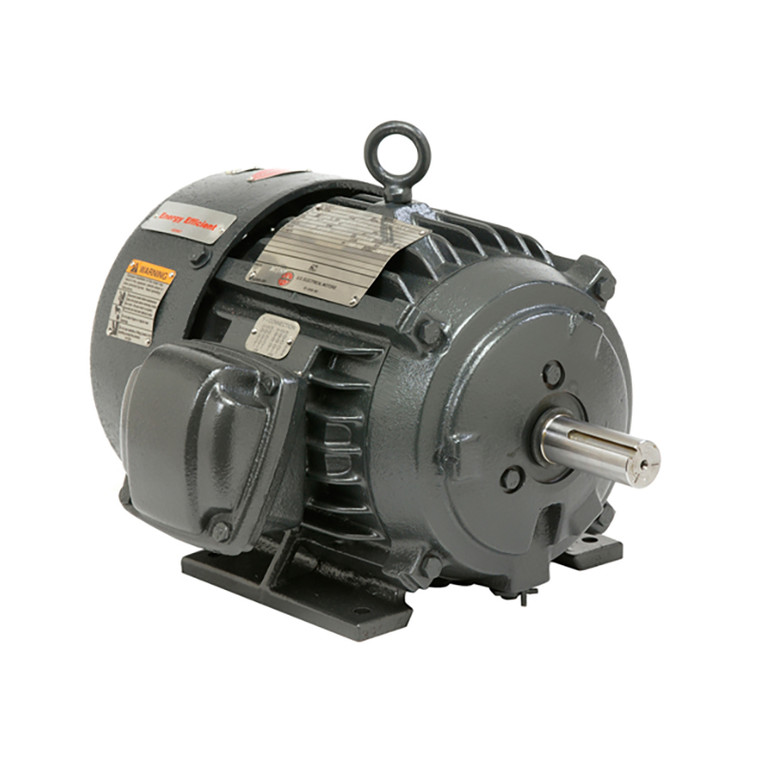

US Motors (Nidec), AC Motor, YC7P4B, 7.5 HP, 900 RPM, Three Phase, 230/460 V, 60 Hz, 256T (YC7P4B)

US Motors (Nidec), AC Motor, YC7P4B, 7.5 HP, 900 RPM, Three Phase, 230/460 V, 60 Hz, 256T (YC7P4B)

Brand:
US Motors (Nidec)
Model:
YC7P4B
Condition:
New
0 Customer Reviews
VFDs.com Guarantee Badge
Out Of Stock
Call for Price
Adding to cart… The item has been added
Write a Review

Technical Specifications

Model:
YC7P4B
Brand:
US Motors (Nidec)
Product Condition:
New
Motor Type:
Explosion Proof
Horsepower Rating:
7.5 HP
Synchronous RPM:
900 RPM
Rated RPM:
885 RPM
Frame Size:
256T
Rated Supply Voltage:
230/460 V
Motor Enclosure Type:
Totally Enclosed Fan Cooled (TEFC)
Motor Design Class:
B
Full Load Torque:
44.6
Rated Voltage:
230 V
Rated Voltage:
460 V
Phase:
Three Phase
Service Factor:
1.15
Insulation Class:
F
Duty Cycle:
Continuous
Efficiency:
86.5%
C Dimension:
25
Motor Winding Type:
Random Wound
Bearing Type:
6207-J/C3
Rated Input Frequency:
60 Hz
Motor Full Load Amps:
23.3/11.7 A

Product Information

US Motors (Nidec) Series

7 1/2 HP, 885 RPM, YC7P4B, 230/460 V, 60 HZ, 256T
Download Brochure
Download Manual

Corro-Duty

APPLICATIONS:

For pulp & paper, mill & chemical and any other severe duty environments found in the process industries

FEATURES:

  • Class F Insulation, Class B Rise At Full Load On 60 Hertz Sine Wave Power
  • All Cast Iron Construction (Steel Frame & Fan Cover On 140 Frame)
  • Corrosion Resistant Mill & Chemical Duty Paint
  • Stainless Steel Nameplate (with "CE" Mark) & Zinc Plated Hardware
  • Shaft Slinger On Pulley End For IP54 Protection
  • Precision Balance (< 0.08 In/Sec Vibration)
  • 40°C Ambient, NEMA®† Design B Performance On 60 Hertz Sine Wave Power
  • Regreasable Bearings 180 Frame & Up, Lifting Provisions 180 Frame & Up
  • Double Shielded Bearings 140-360, Open On 400-440
  • Oversized Conduit Box - 1 Size Larger Than NEMA®† Standard
  • Cast Iron Inner Bearing Caps (180 Frame & Larger)
  • Field Convertible To F2 Mounting 180 Frame & Larger
  • Condensation Drains With Threaded Brass Breather Plugs
