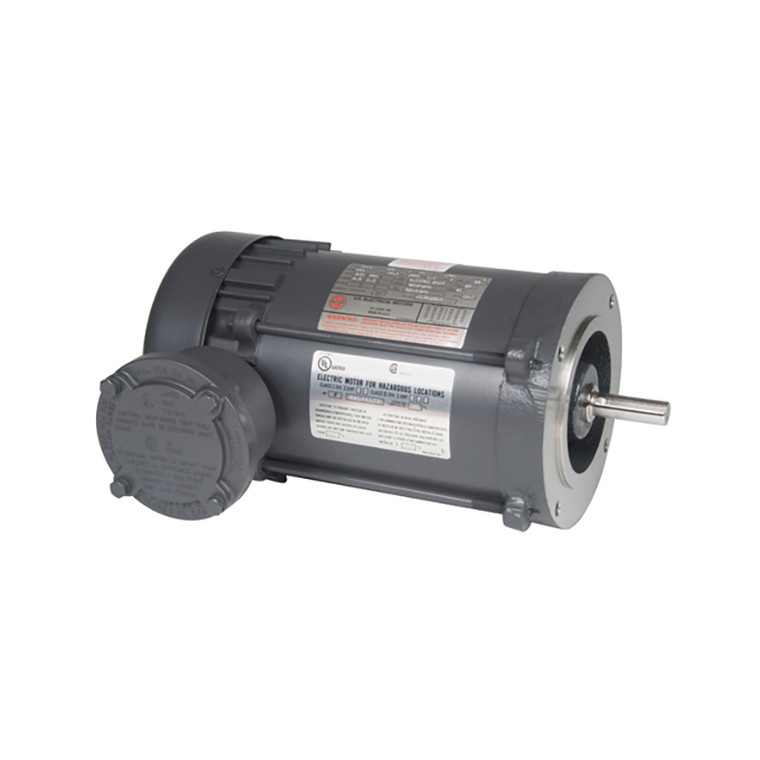

US Motors (Nidec), AC Motor, XS14CA2J, 0.25 HP, 1800 RPM, Single Phase, 115/208-230 & 110/220 V, 60 , 50 Hz, 56 (XS14CA2J)

US Motors (Nidec), AC Motor, XS14CA2J, 0.25 HP, 1800 RPM, Single Phase, 115/208-230 & 110/220 V, 60 , 50 Hz, 56 (XS14CA2J)

Brand:
US Motors (Nidec)
Model:
XS14CA2J
Condition:
New
0 Customer Reviews
VFDs.com Guarantee Badge
Out Of Stock
Call for Price
Adding to cart… The item has been added
Write a Review

Technical Specifications

Model:
XS14CA2J
Brand:
US Motors (Nidec)
Product Condition:
New
Motor Type:
General Purpose
Horsepower Rating:
0.25 HP
Synchronous RPM:
1800 RPM
Frame Size:
56
Rated Supply Voltage:
115/208-230 & 110/220 V
Motor Enclosure Type:
Totally Enclosed Non Ventilated (TENV)
Full Load Torque:
12.24
Rated Voltage:
230 V
Rated Voltage:
115 V
Phase:
Single Phase
Service Factor:
1
Insulation Class:
F
Duty Cycle:
Continuous
C Dimension:
12.5
Bearing Type:
6203
Rated Input Frequency:
60 Hz
Rated Input Frequency:
50 Hz
Motor Full Load Amps:
5.1/2.5-2.5&5.6/2.8 A

Product Information

US Motors (Nidec) Series

1/4 HP, 1725 & 1425 RPM, XS14CA2J, 115/208-230 & 110/220 V, 60 & 50 HZ, 56
