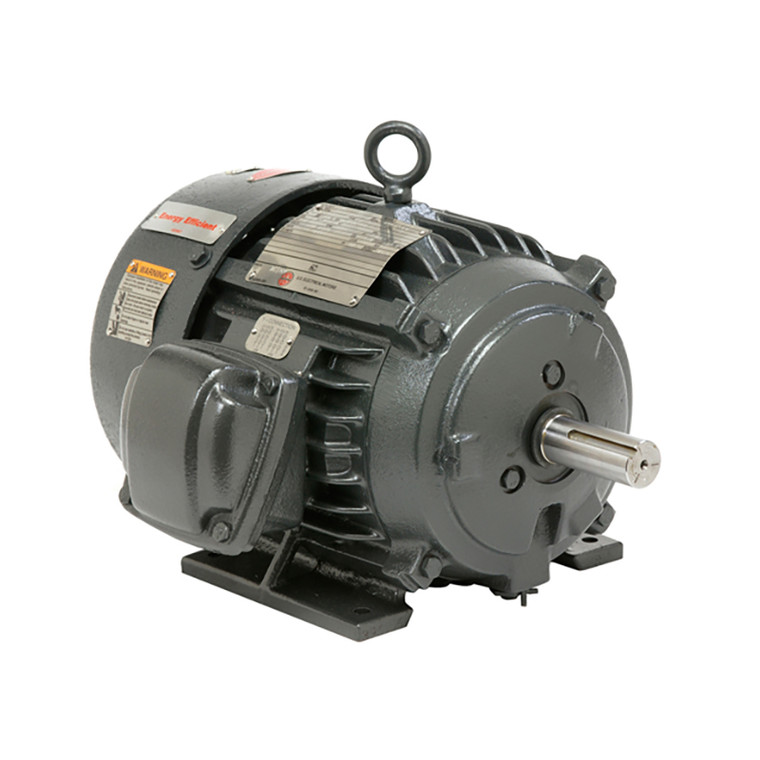

US Motors (Nidec), AC Motor, XS12SA3A, 0.5 HP, 1200 RPM, Three Phase, 208-230/460 V, 60 Hz, 56 (XS12SA3A)

US Motors (Nidec), AC Motor, XS12SA3A, 0.5 HP, 1200 RPM, Three Phase, 208-230/460 V, 60 Hz, 56 (XS12SA3A)

Brand:
US Motors (Nidec)
Model:
XS12SA3A
Condition:
New
0 Customer Reviews
VFDs.com Guarantee Badge
Out Of Stock
Call for Price
Adding to cart… The item has been added
Write a Review

Technical Specifications

Model:
XS12SA3A
Brand:
US Motors (Nidec)
Product Condition:
New
Motor Type:
Explosion Proof
Horsepower Rating:
0.5 HP
Synchronous RPM:
1200 RPM
Rated RPM:
1140 RPM
Frame Size:
56
Rated Supply Voltage:
208-230/460 V
Motor Enclosure Type:
Totally Enclosed Fan Cooled (TEFC)
Rated Voltage:
208 V
Rated Voltage:
230 V
Rated Voltage:
460 V
Phase:
Three Phase
Service Factor:
1.15
Insulation Class:
B
Duty Cycle:
Continuous
C Dimension:
13.1
Bearing Type:
6203
Rated Input Frequency:
60 Hz
Motor Full Load Amps:
2.2-2.3/1.1 A

Product Information

US Motors (Nidec) Series

1/2 HP, 1140 RPM, XS12SA3A, 208-230/460 V, 60 HZ, 56
