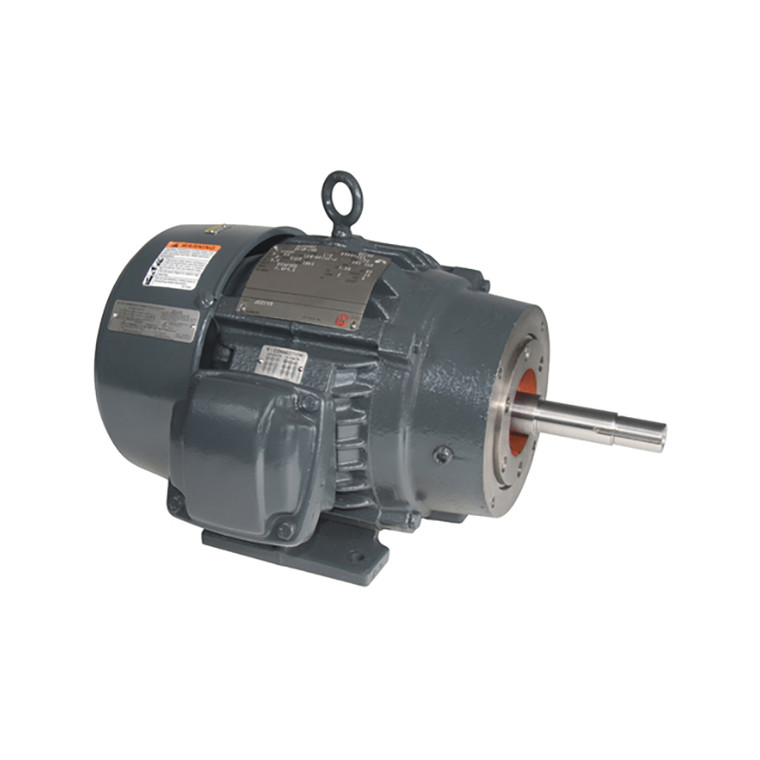

US Motors (Nidec), AC Motor, XJ5P2BM, 5 HP, 1800 RPM, Three Phase, 230/460 V, 60 Hz, 184JM (XJ5P2BM)

US Motors (Nidec), AC Motor, XJ5P2BM, 5 HP, 1800 RPM, Three Phase, 230/460 V, 60 Hz, 184JM (XJ5P2BM)

Brand:
US Motors (Nidec)
Model:
XJ5P2BM
Condition:
New
0 Customer Reviews
VFDs.com Guarantee Badge
Out Of Stock
Call for Price
Adding to cart… The item has been added
Write a Review

Technical Specifications

Model:
XJ5P2BM
Brand:
US Motors (Nidec)
Product Condition:
New
Motor Type:
Pump
Horsepower Rating:
5 HP
Synchronous RPM:
1800 RPM
Rated RPM:
1750 RPM
Frame Size:
184JM
Rated Supply Voltage:
230/460 V
Motor Enclosure Type:
Totally Enclosed Fan Cooled (TEFC)
Motor Design Class:
B
Full Load Torque:
15
Rated Voltage:
230 V
Rated Voltage:
460 V
Phase:
Three Phase
Service Factor:
1
Insulation Class:
F
Duty Cycle:
Continuous
Efficiency:
89.5%
C Dimension:
18.3
Bearing Type:
6205-J/C3
Rated Input Frequency:
60 Hz
Motor Full Load Amps:
12.5/6.2 A

Product Information

US Motors (Nidec) Series

5 HP, 1750 RPM, XJ5P2BM, 230/460 V, 60 HZ, 184JM
