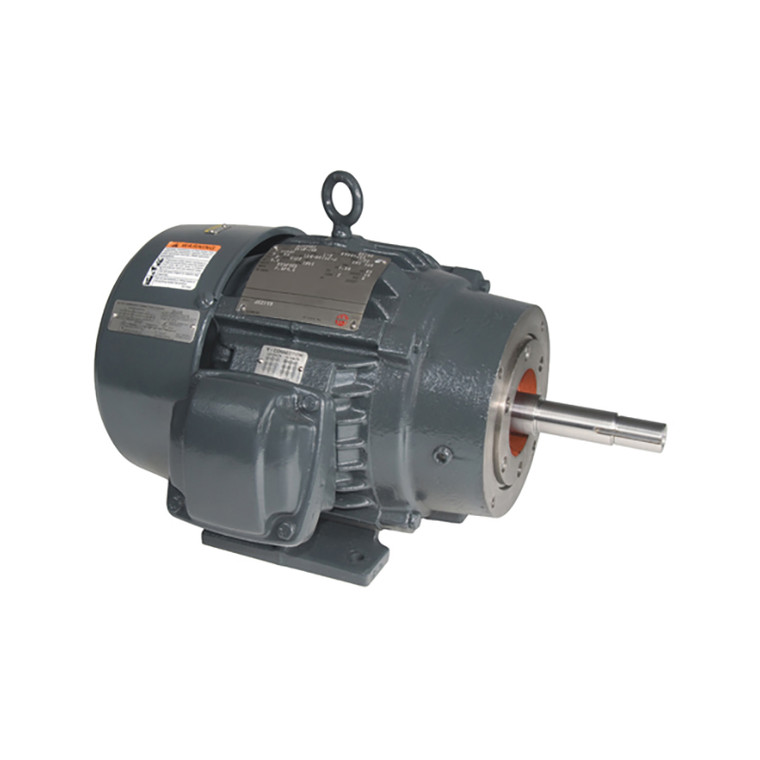

US Motors (Nidec), AC Motor, XJ10P1BM, 10 HP, 3600 RPM, Three Phase, 230/460 V, 60 Hz, 215JM (XJ10P1BM)

US Motors (Nidec), AC Motor, XJ10P1BM, 10 HP, 3600 RPM, Three Phase, 230/460 V, 60 Hz, 215JM (XJ10P1BM)

Brand:
US Motors (Nidec)
Model:
XJ10P1BM
Condition:
New
0 Customer Reviews
VFDs.com Guarantee Badge
Out Of Stock
Call for Price
Adding to cart… The item has been added
Write a Review

Technical Specifications

Model:
XJ10P1BM
Brand:
US Motors (Nidec)
Product Condition:
New
Motor Type:
Pump
Horsepower Rating:
10 HP
Synchronous RPM:
3600 RPM
Rated RPM:
3500 RPM
Frame Size:
215JM
Rated Supply Voltage:
230/460 V
Motor Enclosure Type:
Totally Enclosed Fan Cooled (TEFC)
Motor Design Class:
B
Full Load Torque:
15
Rated Voltage:
230 V
Rated Voltage:
460 V
Phase:
Three Phase
Service Factor:
1.15
Insulation Class:
F
Duty Cycle:
Continuous
Efficiency:
90.2%
C Dimension:
21
Bearing Type:
6206-J/C3
Rated Input Frequency:
60 Hz
Motor Full Load Amps:
23.6/11.8 A

Product Information

US Motors (Nidec) Series

10 HP, 3500 RPM, XJ10P1BM, 230/460 V, 60 HZ, 215JM
