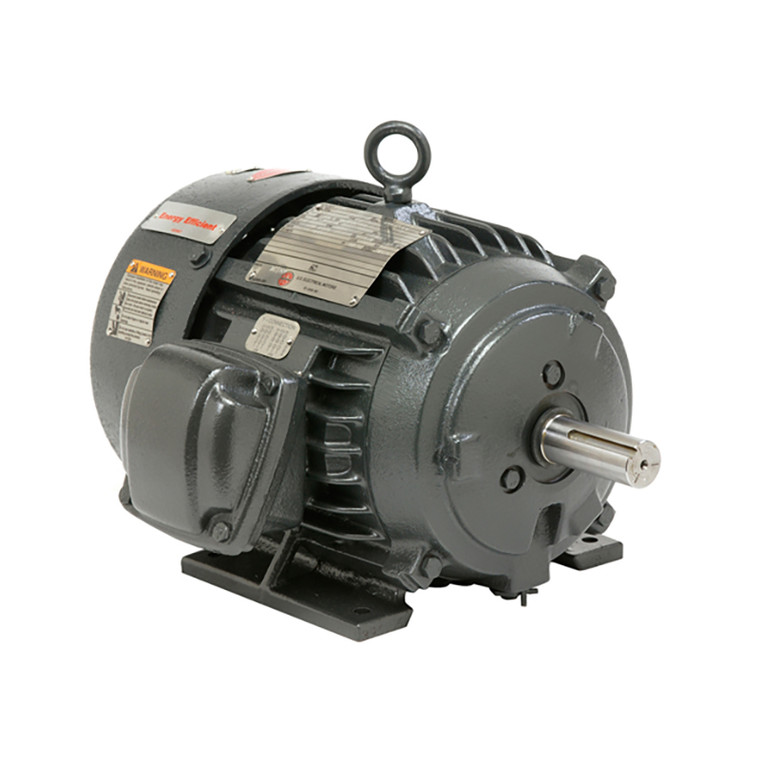

US Motors (Nidec), AC Motor, X200P2C, 200 HP, 1800 RPM, Three Phase, 460 V, 60 Hz, 447T (X200P2C)

US Motors (Nidec), AC Motor, X200P2C, 200 HP, 1800 RPM, Three Phase, 460 V, 60 Hz, 447T (X200P2C)

Brand:
US Motors (Nidec)
Model:
X200P2C
Condition:
New
0 Customer Reviews
VFDs.com Guarantee Badge
Out Of Stock
Call for Price
Adding to cart… The item has been added
Write a Review

Technical Specifications

Model:
X200P2C
Brand:
US Motors (Nidec)
Product Condition:
New
Motor Type:
Explosion Proof
Horsepower Rating:
200 HP
Synchronous RPM:
1800 RPM
Rated RPM:
1785 RPM
Frame Size:
447T
Rated Supply Voltage:
460 V
Motor Enclosure Type:
Totally Enclosed Fan Cooled (TEFC)
Motor Design Class:
B
Full Load Torque:
588
Rated Voltage:
460 V
Phase:
Three Phase
Service Factor:
1.15
Insulation Class:
F
Duty Cycle:
Continuous
Efficiency:
96.2%
Construction:
Cast Iron
C Dimension:
49.3
Bearing Type:
6220-J/C3
Rated Input Frequency:
60 Hz
Motor Full Load Amps:
227 A

Product Information

US Motors (Nidec) Series

200 HP, 1785 RPM, X200P2C, 460 V, 60 HZ, 447T
