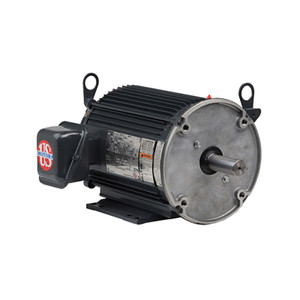

US Motors (Nidec), AC Motor, X15P2BCR, 15 HP, 1800 RPM, Three Phase, 230/460 V, 60 Hz, 254TC (X15P2BCR)

US Motors (Nidec), AC Motor, X15P2BCR, 15 HP, 1800 RPM, Three Phase, 230/460 V, 60 Hz, 254TC (X15P2BCR)

Brand:
US Motors (Nidec)
Model:
X15P2BCR
Condition:
New
0 Customer Reviews
VFDs.com Guarantee Badge
Out Of Stock
Call for Price
Adding to cart… The item has been added
Write a Review

Technical Specifications

Model:
X15P2BCR
Brand:
US Motors (Nidec)
Product Condition:
New
Motor Type:
Explosion Proof
Horsepower Rating:
15 HP
Synchronous RPM:
1800 RPM
Rated RPM:
1775 RPM
Frame Size:
254TC
Rated Supply Voltage:
230/460 V
Motor Enclosure Type:
Totally Enclosed Fan Cooled (TEFC)
Motor Design Class:
B
Full Load Torque:
44.4
Rated Voltage:
230 V
Rated Voltage:
460 V
Phase:
Three Phase
Service Factor:
1
Insulation Class:
F
Duty Cycle:
Continuous
Efficiency:
92.4%
C Dimension:
25.5
Bearing Type:
6207-J/C3
Rated Input Frequency:
60 Hz
Motor Full Load Amps:
37/18.3 A

Product Information

US Motors (Nidec) Series

15 HP, 1775 RPM, X15P2BCR, 230/460 V, 60 HZ, 254TC
