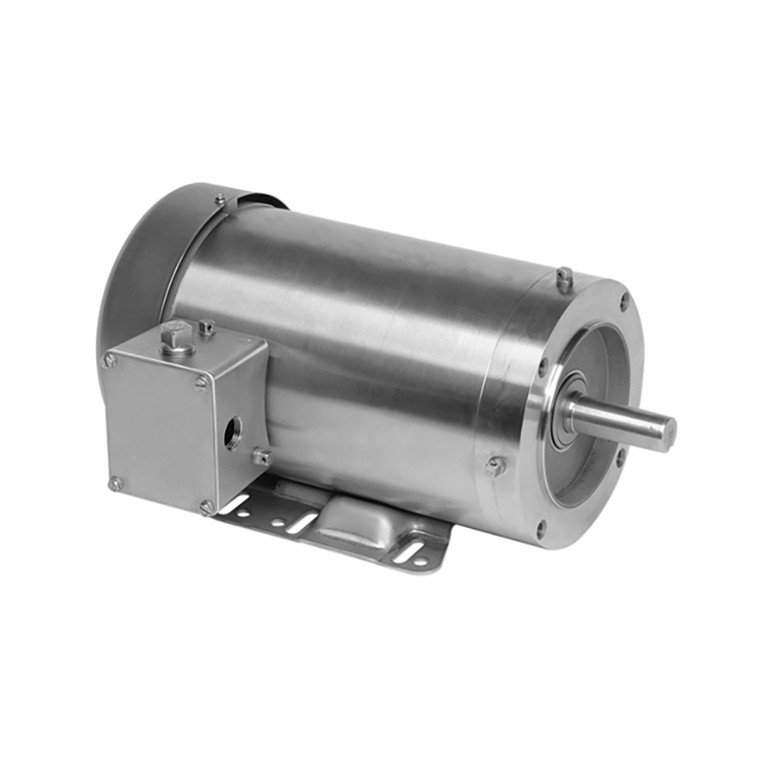

US Motors (Nidec), AC Motor, WDS3P1AC, 3 HP, 3600 RPM, Three Phase, 208-230/460 V, 60 Hz, 182TC (WDS3P1AC)

US Motors (Nidec), AC Motor, WDS3P1AC, 3 HP, 3600 RPM, Three Phase, 208-230/460 V, 60 Hz, 182TC (WDS3P1AC)

Brand:
US Motors (Nidec)
Model:
WDS3P1AC
Condition:
New
0 Customer Reviews
VFDs.com Guarantee Badge
Out Of Stock
Call for Price
Adding to cart… The item has been added
Write a Review

Technical Specifications

Model:
WDS3P1AC
Brand:
US Motors (Nidec)
Product Condition:
New
Motor Type:
Washdown
Horsepower Rating:
3 HP
Synchronous RPM:
3600 RPM
Rated RPM:
3535 RPM
Frame Size:
182TC
Rated Supply Voltage:
208-230/460 V
Motor Enclosure Type:
Totally Enclosed Fan Cooled (TEFC)
Motor Design Class:
B
Full Load Torque:
4.5
Rated Voltage:
208 V
Rated Voltage:
230 V
Rated Voltage:
460 V
Phase:
Three Phase
Service Factor:
1.15
Insulation Class:
F
Duty Cycle:
Continuous
Efficiency:
88.5%
C Dimension:
13.2
Bearing Type:
6205-2RS-J/C3
Rated Input Frequency:
60 Hz
Motor Full Load Amps:
8.1-7.4/3.7 A

Product Information

US Motors (Nidec) Series

3 HP, 3535 RPM, WDS3P1AC, 208-230/460 V, 60 HZ, 182TC
