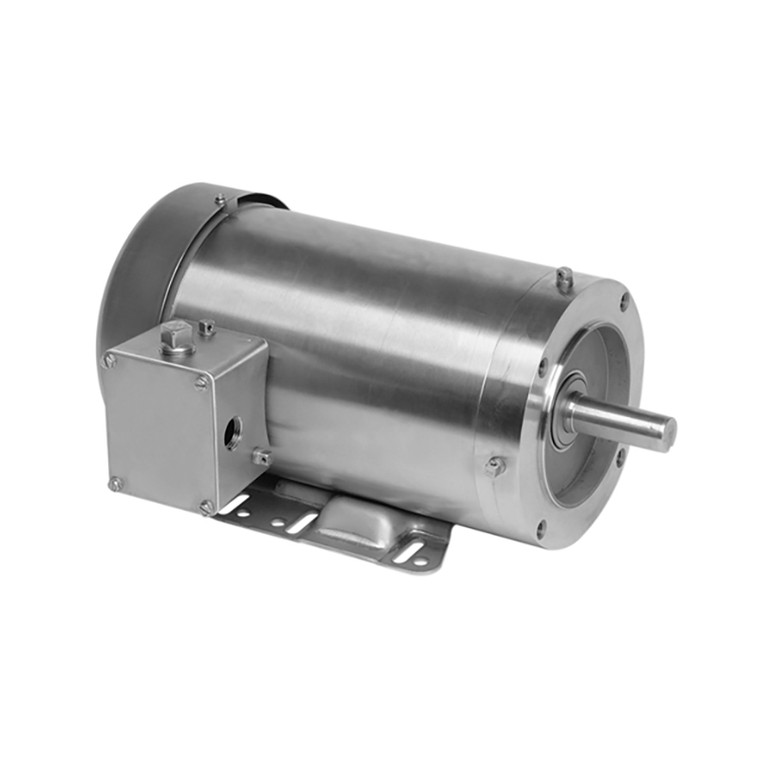

US Motors (Nidec), AC Motor, WDS32P2AC, 1.5 HP, 1800 RPM, Three Phase, 208-230/460 V, 60 Hz, 145TC (WDS32P2AC)

Brand:
US Motors (Nidec)
Model:
WDS32P2AC
Condition:
New
0 Customer Reviews
Out Of Stock
Adding to cart… The item has been added

Technical Specifications

Model:
WDS32P2AC
Brand:
US Motors (Nidec)
Product Condition:
New
Motor Type:
Washdown
Horsepower Rating:
1.5 HP
Synchronous RPM:
1800 RPM
Rated RPM:
1755 RPM
Frame Size:
145TC
Rated Supply Voltage:
208-230/460 V
Motor Enclosure Type:
Totally Enclosed Fan Cooled (TEFC)
Motor Design Class:
B
Full Load Torque:
4.5
Rated Voltage:
208 V
Rated Voltage:
230 V
Rated Voltage:
460 V
Phase:
Three Phase
Service Factor:
1.15
Insulation Class:
F
Duty Cycle:
Continuous
Efficiency:
86.5%
C Dimension:
13.1
Bearing Type:
6203-2RS-J/C3
Rated Input Frequency:
60 Hz
Motor Full Load Amps:
4.4-4.1/2.1 A

Product Information

US Motors (Nidec) Series

1 1/2 HP, 1755 RPM, WDS32P2AC, 208-230/460 V, 60 HZ, 145TC
