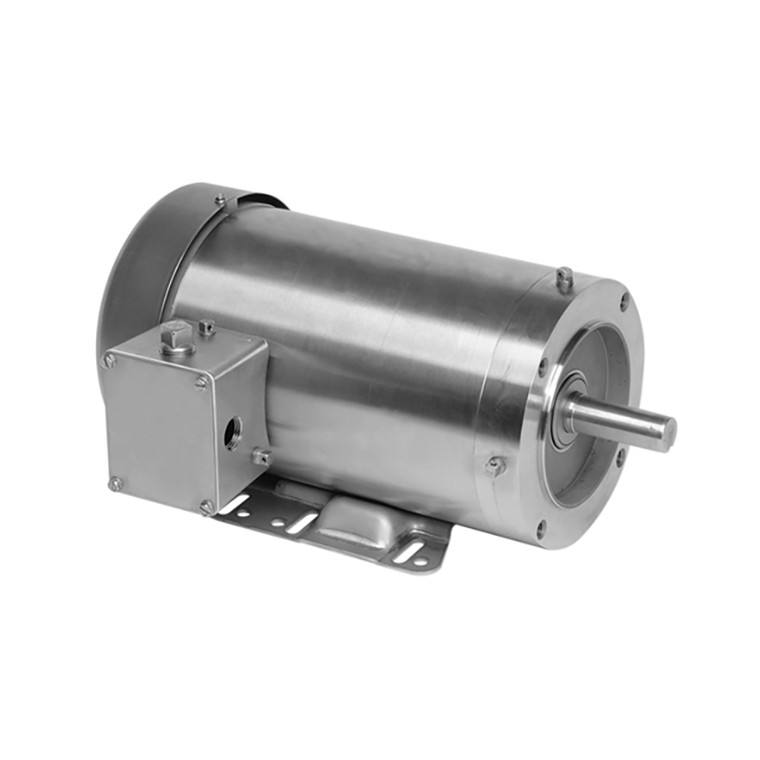

US Motors (Nidec), AC Motor, WDS2P1ACR, 2 HP, 3600 RPM, Three Phase, 208-230/460 V, 60 Hz, 145TC (WDS2P1ACR)

US Motors (Nidec), AC Motor, WDS2P1ACR, 2 HP, 3600 RPM, Three Phase, 208-230/460 V, 60 Hz, 145TC (WDS2P1ACR)

Brand:
US Motors (Nidec)
Model:
WDS2P1ACR
Condition:
New
0 Customer Reviews
VFDs.com Guarantee Badge
Out Of Stock
Call for Price
Adding to cart… The item has been added
Write a Review

Technical Specifications

Model:
WDS2P1ACR
Brand:
US Motors (Nidec)
Product Condition:
New
Motor Type:
Washdown
Horsepower Rating:
2 HP
Synchronous RPM:
3600 RPM
Rated RPM:
3505 RPM
Frame Size:
145TC
Rated Supply Voltage:
208-230/460 V
Motor Design Class:
B
Full Load Torque:
3
Rated Voltage:
208 V
Rated Voltage:
230 V
Rated Voltage:
460 V
Phase:
Three Phase
Service Factor:
1.15
Insulation Class:
F
Duty Cycle:
Continuous
Efficiency:
86.5%
C Dimension:
13.2
Bearing Type:
6203-2RS-J/C3
Rated Input Frequency:
60 Hz
Motor Full Load Amps:
5.3-4.9/2.4 A

Product Information

US Motors (Nidec) Series

2 HP, 3505 RPM, WDS2P1ACR, 208-230/460 V, 60 HZ, 145TC
Download Brochure
Download Manual
