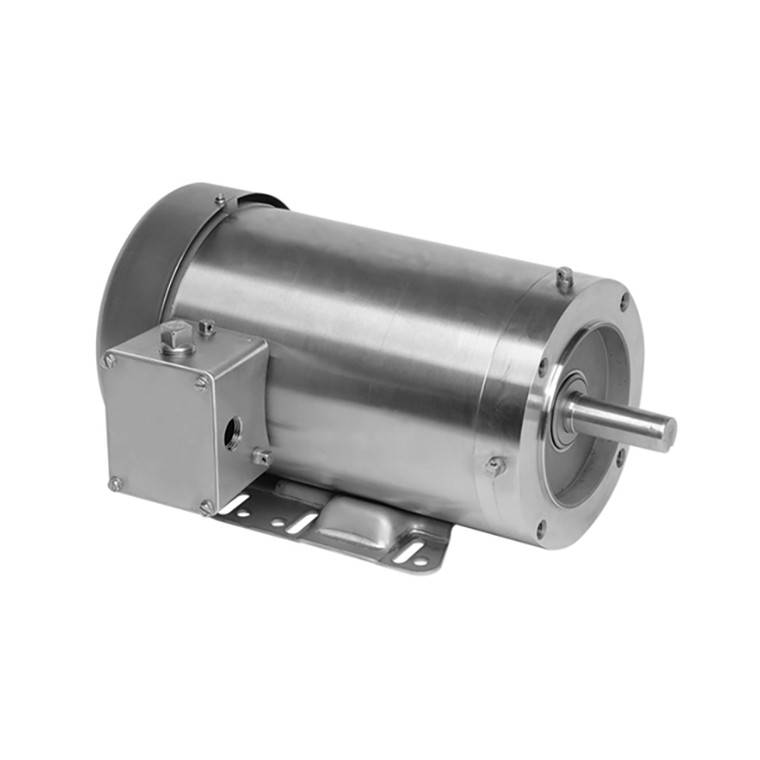

US Motors (Nidec), AC Motor, WDS10P2AC, 10 HP, 1800 RPM, Three Phase, 208-230/460 V, 60 Hz, 215TC (WDS10P2AC)

US Motors (Nidec), AC Motor, WDS10P2AC, 10 HP, 1800 RPM, Three Phase, 208-230/460 V, 60 Hz, 215TC (WDS10P2AC)

Brand:
US Motors (Nidec)
Model:
WDS10P2AC
Condition:
New
0 Customer Reviews
VFDs.com Guarantee Badge
Out Of Stock
Call for Price
Adding to cart… The item has been added
Write a Review

Technical Specifications

Model:
WDS10P2AC
Brand:
US Motors (Nidec)
Product Condition:
New
Motor Type:
Washdown
Horsepower Rating:
10 HP
Synchronous RPM:
1800 RPM
Rated RPM:
1760 RPM
Frame Size:
215TC
Rated Supply Voltage:
208-230/460 V
Motor Enclosure Type:
Totally Enclosed Fan Cooled (TEFC)
Motor Design Class:
B
Full Load Torque:
29.8
Rated Voltage:
208 V
Rated Voltage:
230 V
Rated Voltage:
460 V
Phase:
Three Phase
Service Factor:
1.15
Insulation Class:
F
Duty Cycle:
Continuous
Efficiency:
91.7%
C Dimension:
21.2
Bearing Type:
6205-2RS-J/C3
Rated Input Frequency:
60 Hz
Motor Full Load Amps:
26.5-23.8/11.9 A

Product Information

US Motors (Nidec) Series

10 HP, 1760 RPM, WDS10P2AC, 208-230/460 V, 60 HZ, 215TC
