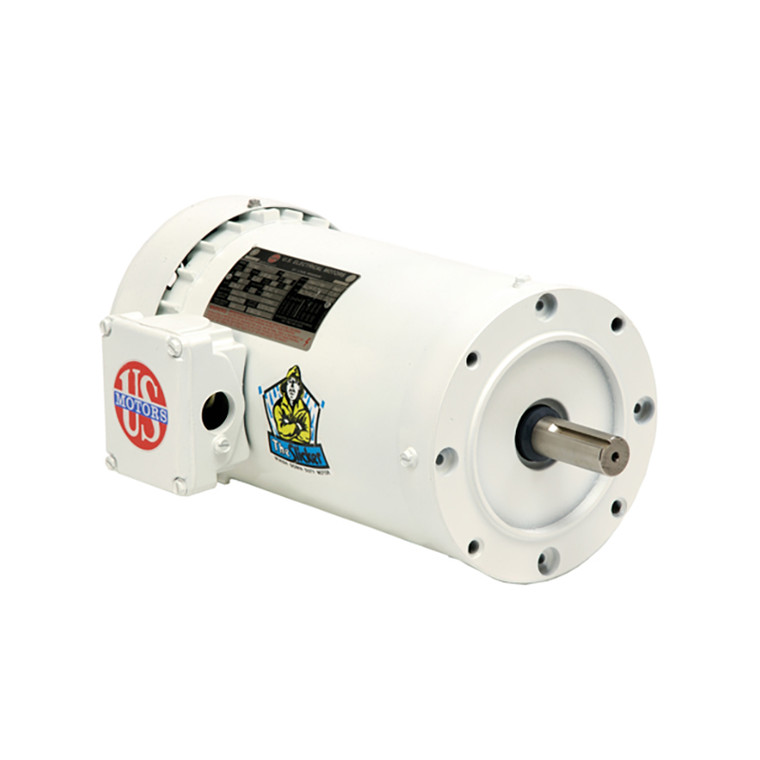

US Motors (Nidec), AC Motor, WD5E2DCR, 5 HP, 1800 RPM, Three Phase, 208-230/460 & 190/380 V, 60 , 50 Hz, 184TC (WD5E2DCR)

US Motors (Nidec), AC Motor, WD5E2DCR, 5 HP, 1800 RPM, Three Phase, 208-230/460 & 190/380 V, 60 , 50 Hz, 184TC (WD5E2DCR)

Brand:
US Motors (Nidec)
Model:
WD5E2DCR
Condition:
New
0 Customer Reviews
VFDs.com Guarantee Badge
Out Of Stock
Call for Price
Adding to cart… The item has been added
Write a Review

Technical Specifications

Model:
WD5E2DCR
Brand:
US Motors (Nidec)
Product Condition:
New
Motor Type:
Washdown
Horsepower Rating:
5 HP
Synchronous RPM:
1800 RPM
Frame Size:
184TC
Rated Supply Voltage:
208-230/460 & 190/380 V
Motor Design Class:
B
Full Load Torque:
15
Rated Voltage:
208 V
Rated Voltage:
230 V
Rated Voltage:
380 V
Rated Voltage:
460 V
Phase:
Three Phase
Service Factor:
1.15
Insulation Class:
F
Duty Cycle:
Continuous
Efficiency:
87.5%
C Dimension:
16.7
Bearing Type:
6205-2Z-J/C3
Rated Input Frequency:
60 Hz
Rated Input Frequency:
50 Hz
Motor Full Load Amps:
14-12.6/6.3 A

Product Information

US Motors (Nidec) Series

5 HP,1750 & 1425 RPM,WD5E2DCR,208-230/460 & 190/380 V,60 & 50,184TC
