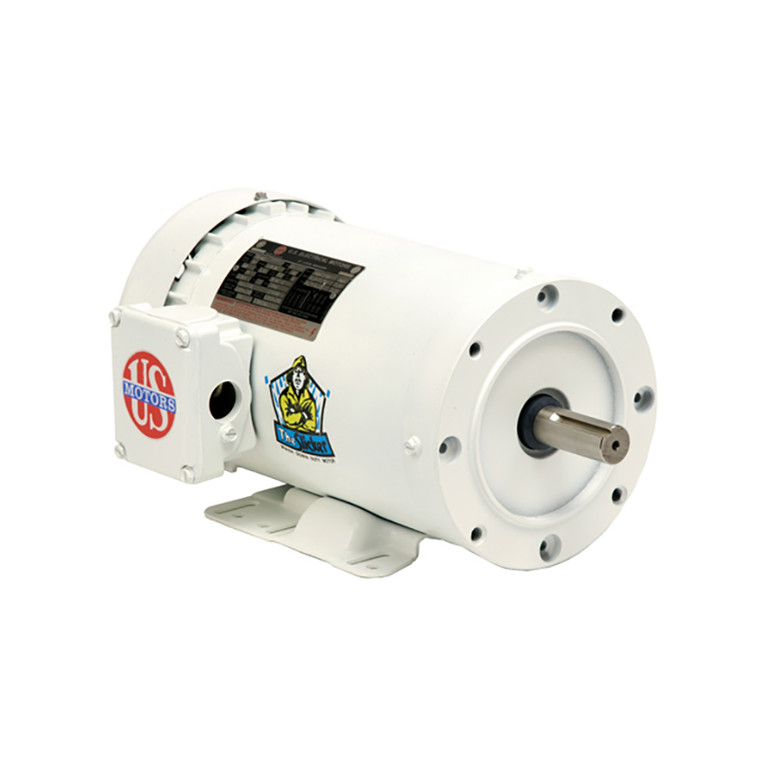

US Motors (Nidec), AC Motor, WD34S1AC, 0.75 HP, 3600 RPM, Three Phase, 208-230/460 V, 60 Hz, 56C (WD34S1AC)

US Motors (Nidec), AC Motor, WD34S1AC, 0.75 HP, 3600 RPM, Three Phase, 208-230/460 V, 60 Hz, 56C (WD34S1AC)

Brand:
US Motors (Nidec)
Model:
WD34S1AC
Condition:
New
0 Customer Reviews
VFDs.com Guarantee Badge
Out Of Stock
Call for Price
Adding to cart… The item has been added
Write a Review

Technical Specifications

Model:
WD34S1AC
Brand:
US Motors (Nidec)
Product Condition:
New
Motor Type:
Washdown
Horsepower Rating:
0.75 HP
Synchronous RPM:
3600 RPM
Rated RPM:
3450 RPM
Frame Size:
56C
Rated Supply Voltage:
208-230/460 V
Motor Enclosure Type:
Totally Enclosed Non Ventilated (TENV)
Motor Design Class:
B
Full Load Torque:
18.31
Rated Voltage:
208 V
Rated Voltage:
230 V
Rated Voltage:
460 V
Phase:
Three Phase
Service Factor:
1.15
Insulation Class:
F
Duty Cycle:
Continuous
Efficiency:
75.5%
C Dimension:
11.7
Bearing Type:
6203
Rated Input Frequency:
60 Hz
Motor Full Load Amps:
2.4-2.2 / 1.1 A

Product Information

US Motors (Nidec) Series

3/4 HP, 3450 RPM, WD34S1AC, 208-230/460 V, 60 HZ, 56C
