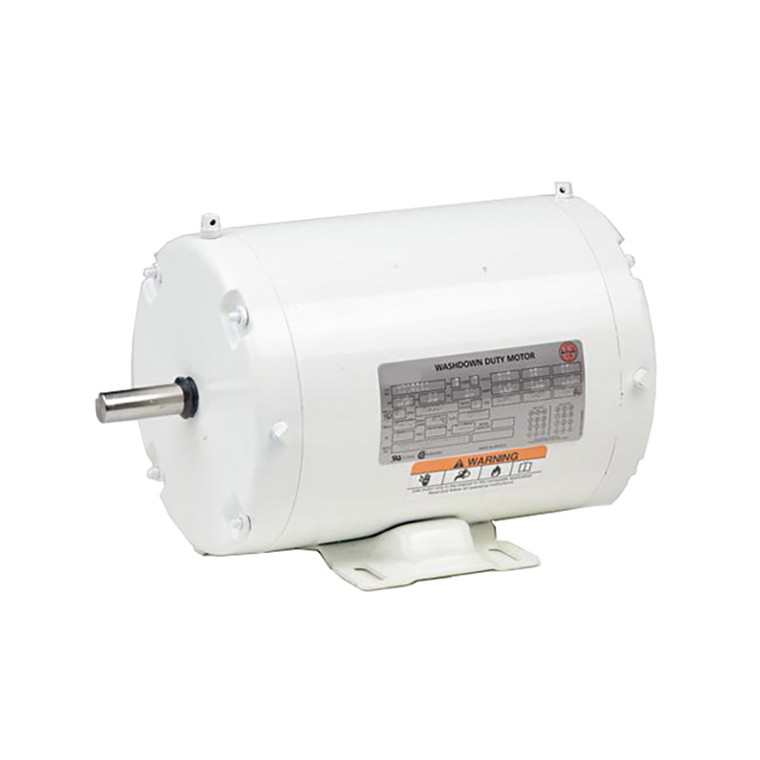

US Motors (Nidec), AC Motor, WD2P2A14, 2 HP, 1800 RPM, Three Phase, 208-230/460 V, 60 Hz, 145T (WD2P2A14)

US Motors (Nidec), AC Motor, WD2P2A14, 2 HP, 1800 RPM, Three Phase, 208-230/460 V, 60 Hz, 145T (WD2P2A14)

Brand:
US Motors (Nidec)
Model:
WD2P2A14
Condition:
New
0 Customer Reviews
VFDs.com Guarantee Badge
Out Of Stock
Call for Price
Adding to cart… The item has been added
Write a Review

Technical Specifications

Model:
WD2P2A14
Brand:
US Motors (Nidec)
Product Condition:
New
Motor Type:
Washdown
Horsepower Rating:
2 HP
Synchronous RPM:
1800 RPM
Rated RPM:
1725 RPM
Frame Size:
145T
Rated Supply Voltage:
208-230/460 V
Motor Enclosure Type:
Totally Enclosed Fan Cooled (TEFC)
Motor Design Class:
B
Rated Voltage:
208 V
Rated Voltage:
230 V
Rated Voltage:
460 V
Phase:
Three Phase
Service Factor:
1
Insulation Class:
F
Duty Cycle:
Continuous
Efficiency:
86.5%
C Dimension:
14.7
Bearing Type:
6203
Rated Input Frequency:
60 Hz
Motor Full Load Amps:
6.2-6.0/3.0 A

Product Information

US Motors (Nidec) Series

2 HP, 1725 RPM, WD2P2A14, 208-230/460 V, 60 HZ, 145T
Download Brochure
Download Manual
