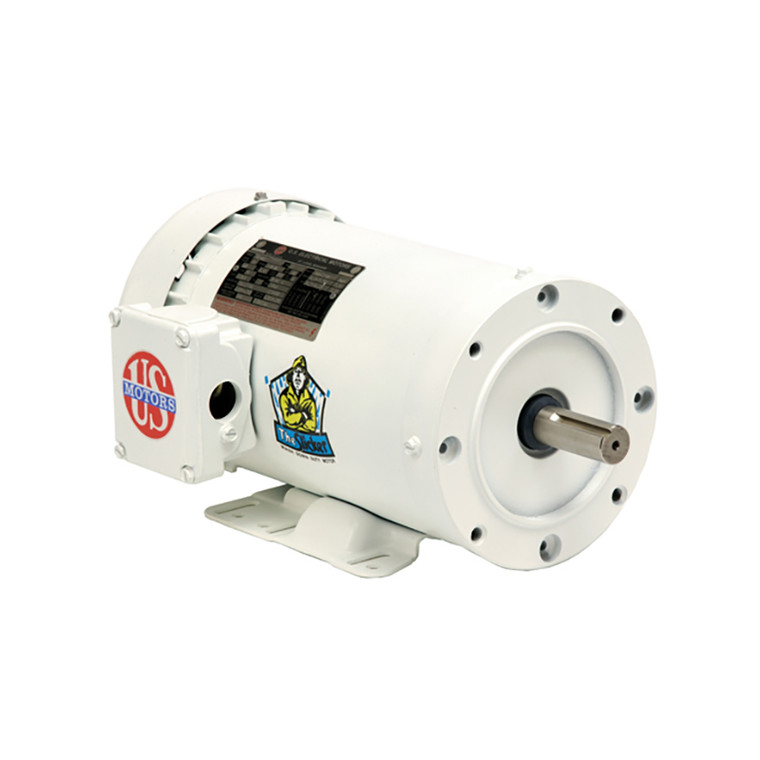

US Motors (Nidec), AC Motor, WD1P1AC, 1 HP, 3600 RPM, Three Phase, 208-230/460 V, 60 Hz, 56C (WD1P1AC)

US Motors (Nidec), AC Motor, WD1P1AC, 1 HP, 3600 RPM, Three Phase, 208-230/460 V, 60 Hz, 56C (WD1P1AC)

Brand:
US Motors (Nidec)
Model:
WD1P1AC
Condition:
New
0 Customer Reviews
VFDs.com Guarantee Badge
Out Of Stock
Call for Price
Adding to cart… The item has been added
Write a Review

Technical Specifications

Model:
WD1P1AC
Brand:
US Motors (Nidec)
Product Condition:
New
Motor Type:
Washdown
Horsepower Rating:
1 HP
Synchronous RPM:
3600 RPM
Rated RPM:
3450 RPM
Frame Size:
56C
Rated Supply Voltage:
208-230/460 V
Motor Enclosure Type:
Totally Enclosed Non Ventilated (TENV)
Motor Design Class:
B
Full Load Torque:
24.31
Rated Voltage:
208 V
Rated Voltage:
230 V
Rated Voltage:
460 V
Phase:
Three Phase
Service Factor:
1.15
Insulation Class:
F
Duty Cycle:
Continuous
Efficiency:
77%
C Dimension:
12.2
Bearing Type:
6203
Rated Input Frequency:
60 Hz
Motor Full Load Amps:
3.4-3.2 / 1.6 A

Product Information

US Motors (Nidec) Series

1 HP, 3450 RPM, WD1P1AC, 208-230/460 V, 60 HZ, 56C
