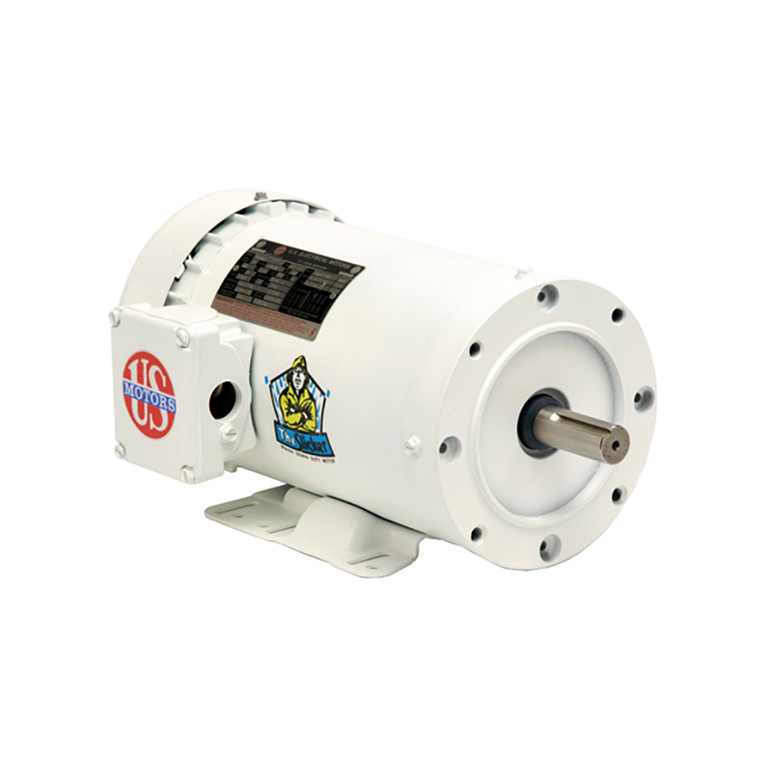

US Motors (Nidec), AC Motor, WD15P1DFC, 15 HP, 3600 RPM, Three Phase, 208-230/460 & 190/380 V, 60 , 50 Hz, 215TC (WD15P1DFC)

US Motors (Nidec), AC Motor, WD15P1DFC, 15 HP, 3600 RPM, Three Phase, 208-230/460 & 190/380 V, 60 , 50 Hz, 215TC (WD15P1DFC)

Brand:
US Motors (Nidec)
Model:
WD15P1DFC
Condition:
New
0 Customer Reviews
VFDs.com Guarantee Badge
Out Of Stock
Call for Price
Adding to cart… The item has been added
Write a Review

Technical Specifications

Model:
WD15P1DFC
Brand:
US Motors (Nidec)
Product Condition:
New
Motor Type:
Washdown
Horsepower Rating:
15 HP
Synchronous RPM:
3600 RPM
Frame Size:
215TC
Rated Supply Voltage:
208-230/460 & 190/380 V
Motor Enclosure Type:
Totally Enclosed Fan Cooled (TEFC)
Motor Design Class:
A
Full Load Torque:
22.3
Rated Voltage:
208 V
Rated Voltage:
230 V
Rated Voltage:
380 V
Rated Voltage:
460 V
Phase:
Three Phase
Service Factor:
1.15
Insulation Class:
F
Duty Cycle:
Continuous
Efficiency:
93%
C Dimension:
21.4
Bearing Type:
6205-2RS-J/C3
Rated Input Frequency:
60 Hz
Rated Input Frequency:
50 Hz
Motor Full Load Amps:
38-35/17.4 A

Product Information

US Motors (Nidec) Series

15 HP, 3540 & 2910 RPM, WD15P1DFC, 208-230/460 & 190/380 V, 60 & 50 HZ, 215TC
