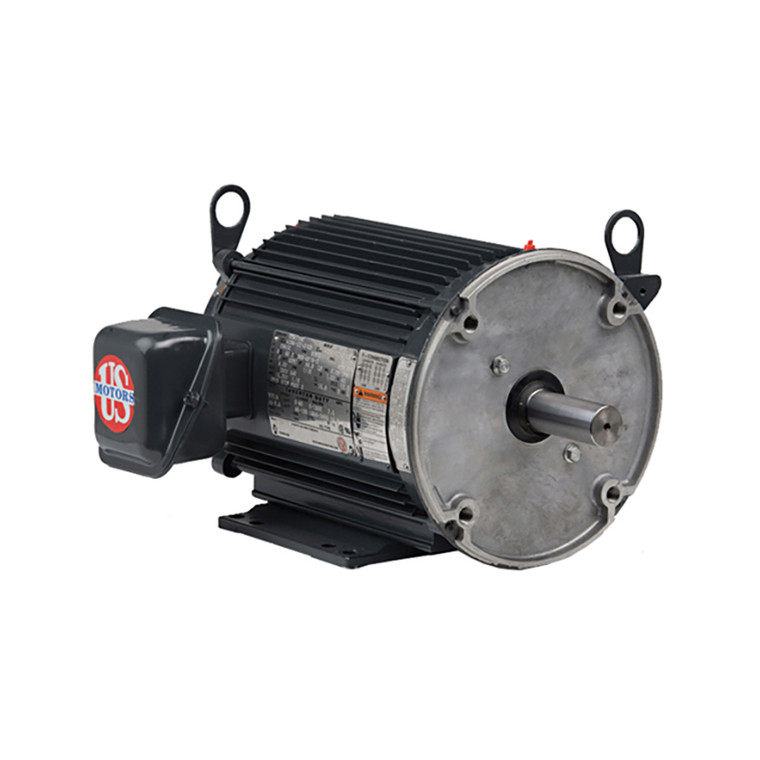

US Motors (Nidec), AC Motor, UN7T3BC, 7.5 HP, 1200 RPM, Three Phase, 230/460 V, 60 Hz, 254TC (UN7T3BC)

US Motors (Nidec), AC Motor, UN7T3BC, 7.5 HP, 1200 RPM, Three Phase, 230/460 V, 60 Hz, 254TC (UN7T3BC)

Brand:
US Motors (Nidec)
Model:
UN7T3BC
Condition:
New
0 Customer Reviews
VFDs.com Guarantee Badge
Out Of Stock
Call for Price
Adding to cart… The item has been added
Write a Review

Technical Specifications

Model:
UN7T3BC
Brand:
US Motors (Nidec)
Product Condition:
New
Motor Type:
General Purpose
Horsepower Rating:
7.5 HP
Synchronous RPM:
1200 RPM
Rated RPM:
1185 RPM
Frame Size:
254TC
Rated Supply Voltage:
230/460 V
Motor Design Class:
A
Full Load Torque:
33.2
Rated Voltage:
230 V
Rated Voltage:
460 V
Phase:
Three Phase
Service Factor:
1
Insulation Class:
F
Duty Cycle:
Continuous
Efficiency:
91.7%
C Dimension:
25.3
Bearing Type:
6207-2Z-J/C3
Rated Input Frequency:
60 Hz
Motor Full Load Amps:
19.8/9.9 A

Product Information

US Motors (Nidec) Series

7 1/2 HP, 1185 RPM, UN7T3BC, 230/460 V, 60 HZ, 254TC
