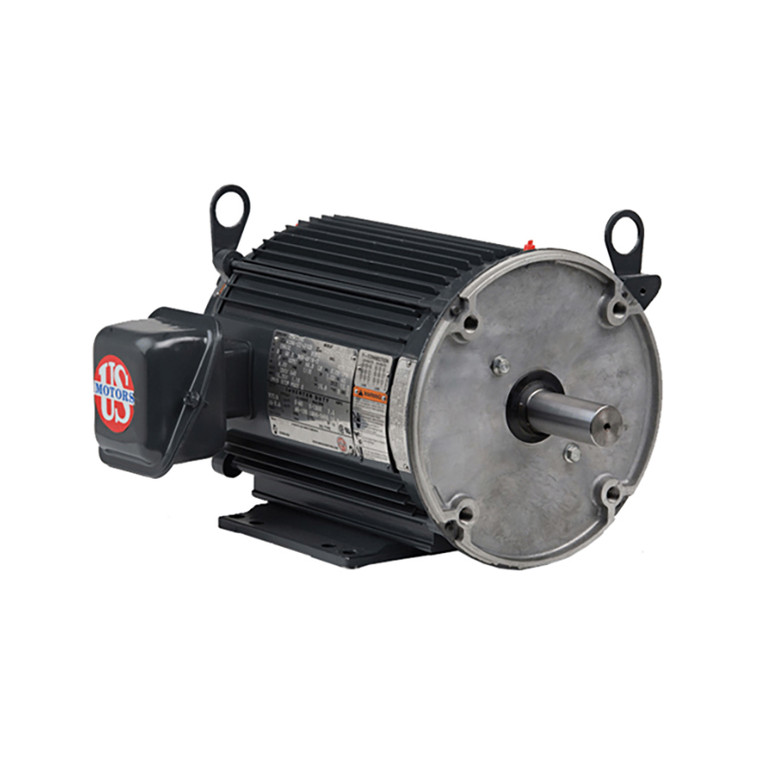

US Motors (Nidec), AC Motor, UN7T2BC, 7.5 HP, 1800 RPM, Three Phase, 230/460 V, 60 Hz, 213TC (UN7T2BC)

US Motors (Nidec), AC Motor, UN7T2BC, 7.5 HP, 1800 RPM, Three Phase, 230/460 V, 60 Hz, 213TC (UN7T2BC)

Brand:
US Motors (Nidec)
Model:
UN7T2BC
Condition:
New
0 Customer Reviews
VFDs.com Guarantee Badge
Out Of Stock
Call for Price
Adding to cart… The item has been added
Write a Review

Technical Specifications

Model:
UN7T2BC
Brand:
US Motors (Nidec)
Product Condition:
New
Motor Type:
General Purpose
Horsepower Rating:
7.5 HP
Synchronous RPM:
1800 RPM
Rated RPM:
1775 RPM
Frame Size:
213TC
Rated Supply Voltage:
230/460 V
Motor Enclosure Type:
Totally Enclosed Non Ventilated (TENV)
Motor Design Class:
A
Full Load Torque:
22.2
Rated Voltage:
230 V
Rated Voltage:
460 V
Phase:
Three Phase
Service Factor:
1
Insulation Class:
F
Duty Cycle:
Continuous
Efficiency:
92.4%
C Dimension:
20
Bearing Type:
6206-2Z-J/C3
Rated Input Frequency:
60 Hz
Motor Full Load Amps:
18.8/9.4 A

Product Information

US Motors (Nidec) Series

7 1/2 HP, 1775 RPM, UN7T2BC, 230/460 V, 60 HZ, 213TC
Download Brochure
