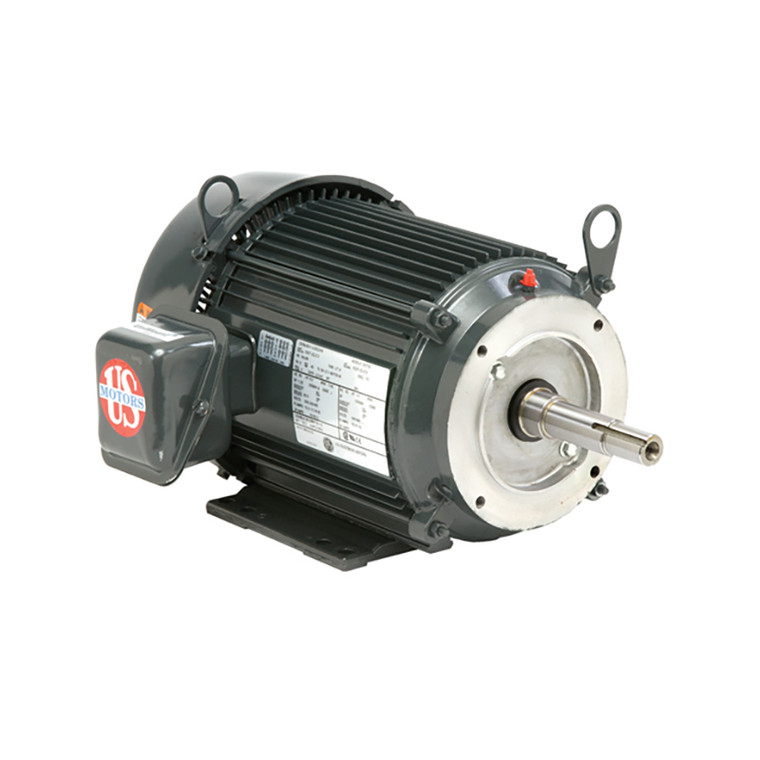

US Motors (Nidec), AC Motor, UJ7P1DFM, 7.5 HP, 3600 RPM, Three Phase, 208-230/460 & 190/380 V, 60 , 50 Hz, 184JM (UJ7P1DFM)

US Motors (Nidec), AC Motor, UJ7P1DFM, 7.5 HP, 3600 RPM, Three Phase, 208-230/460 & 190/380 V, 60 , 50 Hz, 184JM (UJ7P1DFM)

Brand:
US Motors (Nidec)
Model:
UJ7P1DFM
Condition:
New
0 Customer Reviews
VFDs.com Guarantee Badge
Out Of Stock
Call for Price
Adding to cart… The item has been added
Write a Review

Technical Specifications

Model:
UJ7P1DFM
Brand:
US Motors (Nidec)
Product Condition:
New
Motor Type:
Pump
Horsepower Rating:
7.5 HP
Synchronous RPM:
3600 RPM
Frame Size:
184JM
Rated Supply Voltage:
208-230/460 & 190/380 V
Motor Enclosure Type:
Totally Enclosed Fan Cooled (TEFC)
Motor Design Class:
A
Full Load Torque:
11.1
Rated Voltage:
208 V
Rated Voltage:
230 V
Rated Voltage:
380 V
Rated Voltage:
460 V
Phase:
Three Phase
Service Factor:
1.25
Insulation Class:
F
Duty Cycle:
Continuous
Efficiency:
90.2%
C Dimension:
17.8
Bearing Type:
6205-2Z-J/C3
Rated Input Frequency:
60 Hz
Rated Input Frequency:
50 Hz
Motor Full Load Amps:
19.9-19/9.5 A

Product Information

US Motors (Nidec) Series

7 1/2 HP, 3540 & 2915 RPM, UJ7P1DFM, 208-230/460 & 190/380 V, 60 & 50 HZ, 184JM
