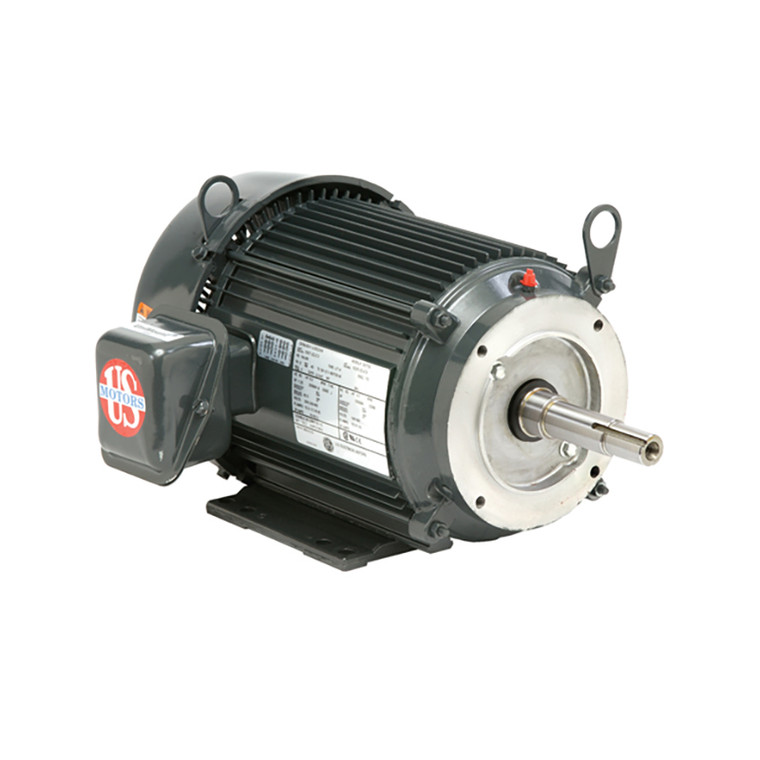

US Motors (Nidec), AC Motor, UJ3P2DP, 3 HP, 1800 RPM, Three Phase, 208-230/460 & 190/380 V, 60 , 50 Hz, 182JP (UJ3P2DP)

US Motors (Nidec), AC Motor, UJ3P2DP, 3 HP, 1800 RPM, Three Phase, 208-230/460 & 190/380 V, 60 , 50 Hz, 182JP (UJ3P2DP)

Brand:
US Motors (Nidec)
Model:
UJ3P2DP
Condition:
New
0 Customer Reviews
VFDs.com Guarantee Badge
Out Of Stock
Call for Price
Adding to cart… The item has been added
Write a Review

Technical Specifications

Model:
FL35
Brand:
US Motors (Nidec)
Product Condition:
New
Motor Type:
Pump
Horsepower Rating:
3 HP
Synchronous RPM:
1800 RPM
Frame Size:
182JP
Rated Supply Voltage:
208-230/460 & 190/380 V
Motor Enclosure Type:
Totally Enclosed Fan Cooled (TEFC)
Motor Design Class:
B
Full Load Torque:
8.9
Rated Voltage:
208 V
Rated Voltage:
230 V
Rated Voltage:
380 V
Rated Voltage:
460 V
Phase:
Three Phase
Service Factor:
1.25
Insulation Class:
F
Duty Cycle:
Continuous
Efficiency:
89.5%
C Dimension:
20.8
Bearing Type:
6205-2Z-J/C3
Rated Input Frequency:
60 Hz
Rated Input Frequency:
50 Hz
Motor Full Load Amps:
8.4-7.8/3.9 A

Product Information

US Motors (Nidec) Series

3 HP, 1765 & 1455 RPM, UJ3P2DP, 208-230/460 & 190/380 V, 60 & 50 HZ, 182JP
