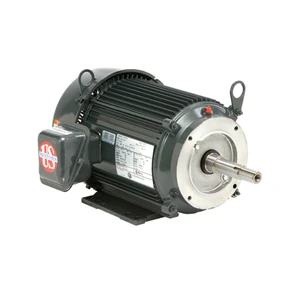

US Motors (Nidec), AC Motor, UJ15P2DP, 15 HP, 1800 RPM, Three Phase, 208-230/460 & 190/380 V, 60 , 50 Hz, 254JP (UJ15P2DP)

US Motors (Nidec), AC Motor, UJ15P2DP, 15 HP, 1800 RPM, Three Phase, 208-230/460 & 190/380 V, 60 , 50 Hz, 254JP (UJ15P2DP)

Brand:
US Motors (Nidec)
Model:
UJ15P2DP
Condition:
New
0 Customer Reviews
VFDs.com Guarantee Badge
Out Of Stock
Call for Price
Adding to cart… The item has been added
Write a Review

Technical Specifications

Model:
UJ15P2DP
Brand:
US Motors (Nidec)
Product Condition:
New
Motor Type:
Pump
Horsepower Rating:
15 HP
Synchronous RPM:
1800 RPM
Frame Size:
254JP
Rated Supply Voltage:
208-230/460 & 190/380 V
Motor Enclosure Type:
Totally Enclosed Fan Cooled (TEFC)
Motor Design Class:
B
Full Load Torque:
44.4
Rated Voltage:
208 V
Rated Voltage:
230 V
Rated Voltage:
380 V
Rated Voltage:
460 V
Phase:
Three Phase
Service Factor:
1.25
Insulation Class:
F
Duty Cycle:
Continuous
Efficiency:
92.4%
C Dimension:
28.2
Bearing Type:
6207-2Z-J/C3
Rated Input Frequency:
60 Hz
Rated Input Frequency:
50 Hz
Motor Full Load Amps:
40-37/18.4 A

Product Information

US Motors (Nidec) Series

15 HP, 1775 & 1465 RPM, UJ15P2DP, 208-230/460 & 190/380 V, 60 & 50 HZ, 254JP
