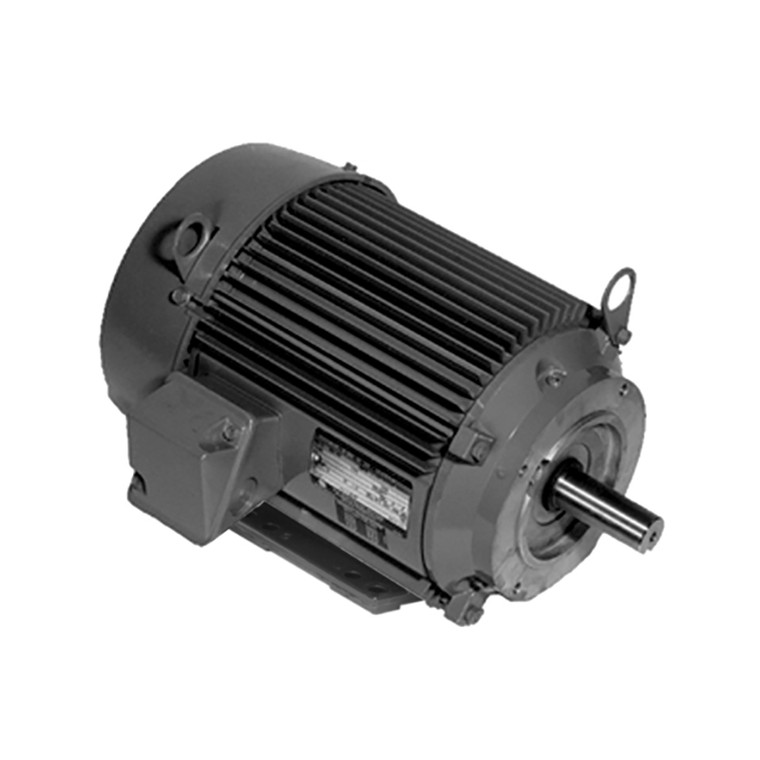

US Motors (Nidec), AC Motor, U10P1GC, 10 HP, 3600 RPM, Three Phase, 575 V, 60 Hz, 215TC (U10P1GC)

US Motors (Nidec), AC Motor, U10P1GC, 10 HP, 3600 RPM, Three Phase, 575 V, 60 Hz, 215TC (U10P1GC)

Brand:
US Motors (Nidec)
Model:
U10P1GC
Condition:
New
0 Customer Reviews
VFDs.com Guarantee Badge
Out Of Stock
Call for Price
Adding to cart… The item has been added
Write a Review

Technical Specifications

Model:
U10P1GC
Brand:
US Motors (Nidec)
Product Condition:
New
Motor Type:
General Purpose
Horsepower Rating:
10 HP
Synchronous RPM:
3600 RPM
Rated RPM:
3520 RPM
Frame Size:
215TC
Rated Supply Voltage:
575 V
Motor Enclosure Type:
Totally Enclosed Fan Cooled (TEFC)
Motor Design Class:
B
Full Load Torque:
14.9
Rated Voltage:
575 V
Phase:
Three Phase
Service Factor:
1.25
Insulation Class:
F
Duty Cycle:
Continuous
Efficiency:
91.7%
Construction:
Aluminum
C Dimension:
20.1
Bearing Type:
6206-2Z-J/C3
Rated Input Frequency:
60 Hz
Motor Full Load Amps:
9.4 A

Product Information

US Motors (Nidec) Series

10 HP, 3520 RPM, U10P1GC, 575 V, 60 HZ, 215TC
Download Brochure
Download Manual

Unimount

APPLICATIONS:

For general industrial equipment including fans, blowers, compressors, pumps and direct connected equipment.

FEATURES:

UNIMOUNT® NEMA®†

  • Premium Efficient (Discount Symbol DS-3AL)
  • Class F Insulation, Class B Rise At Full Load On 60 Hertz Sine Wave Power
  • "CE" Mark On Nameplate
  • Shaft Slinger On Pulley End
  • Full 50 & 60 Hertz Operating Data On Nameplate (03)
  • Full HP @ 50 Hertz
  • 40°C Ambient, NEMA®† Design B Performance On 60 Hertz

Sine Wave Power

  • Sealed Bearings (140 Frame); Double Shielded Bearings (180 Frame and Up)
  • Dual Voltage Ratings Suitable For Part Winding Start (PWS) On Low Voltage
  • Suitable For Wye-Delta Start 250 Frame & Larger
  • Conversion Kits: C&D Flanges, Drip Cover and Brakes
