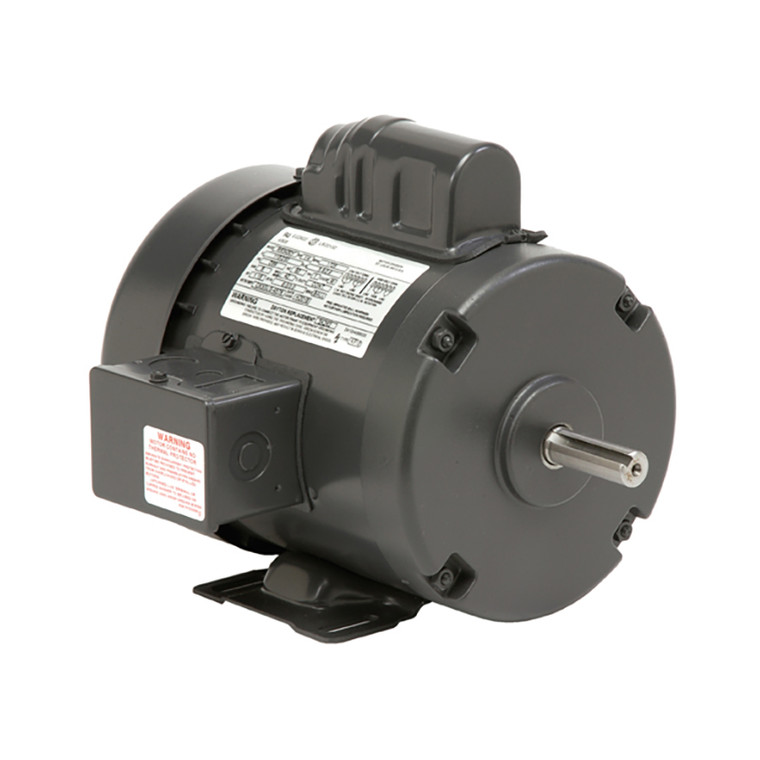

US Motors (Nidec), AC Motor, T5C1K18, 5 HP, 3600 RPM, Single Phase, 230 V, 60 Hz, 184T (T5C1K18)

US Motors (Nidec), AC Motor, T5C1K18, 5 HP, 3600 RPM, Single Phase, 230 V, 60 Hz, 184T (T5C1K18)

Brand:
US Motors (Nidec)
Model:
T5C1K18
Condition:
New
0 Customer Reviews
VFDs.com Guarantee Badge
Out Of Stock
Call for Price
Adding to cart… The item has been added
Write a Review

Technical Specifications

Model:
T5C1K18
Brand:
US Motors (Nidec)
Product Condition:
New
Motor Type:
General Purpose
Horsepower Rating:
5 HP
Synchronous RPM:
3600 RPM
Rated RPM:
3505 RPM
Frame Size:
184T
Rated Supply Voltage:
230 V
Motor Design Class:
L
Rated Voltage:
230 V
Phase:
Single Phase
Service Factor:
1
Insulation Class:
F
Duty Cycle:
Continuous
Efficiency:
82.2%
Construction:
Rolled Steel
C Dimension:
17.3
Bearing Type:
6205-2Z=J/C3
Rated Input Frequency:
60 Hz
Motor Full Load Amps:
19.6 A

Product Information

US Motors (Nidec) Series

5 HP, 3505 RPM, T5C1K18, 230 V, 60 HZ, 184T
