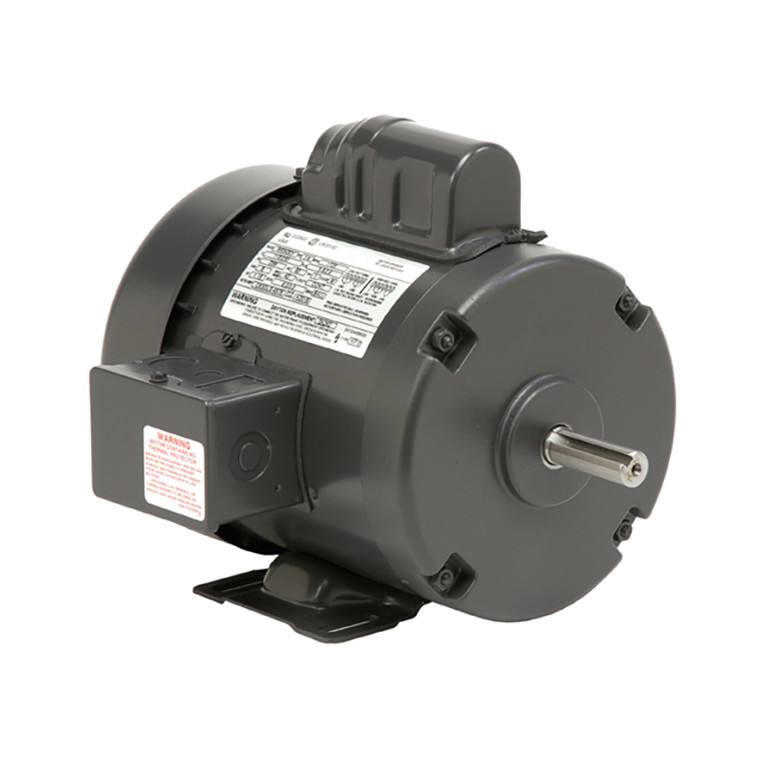

US Motors (Nidec), AC Motor, T3C2P21, 3 HP, 1800 RPM, Single Phase, 115/230 V, 60 Hz, 215 (T3C2P21)

US Motors (Nidec), AC Motor, T3C2P21, 3 HP, 1800 RPM, Single Phase, 115/230 V, 60 Hz, 215 (T3C2P21)

Brand:
US Motors (Nidec)
Model:
T3C2P21
Condition:
New
0 Customer Reviews
VFDs.com Guarantee Badge
Out Of Stock
Call for Price
Adding to cart… The item has been added
Write a Review

Technical Specifications

Model:
T3C2P21
Brand:
US Motors (Nidec)
Product Condition:
New
Motor Type:
General Purpose
Horsepower Rating:
3 HP
Synchronous RPM:
1800 RPM
Rated RPM:
1730 RPM
Frame Size:
215
Rated Supply Voltage:
115/230 V
Motor Design Class:
L
Rated Voltage:
230 V
Rated Voltage:
115 V
Phase:
Single Phase
Service Factor:
1
Insulation Class:
F
Duty Cycle:
Continuous
Efficiency:
80.1%
Construction:
Rolled Steel
C Dimension:
19.6
Bearing Type:
6205-2Z-J/C3
Rated Input Frequency:
60 Hz
Motor Full Load Amps:
33.6/16.8 A

Product Information

US Motors (Nidec) Series

3 HP, 1730 RPM, T3C2P21, 115/230 V, 60 HZ, 215
Download Brochure
