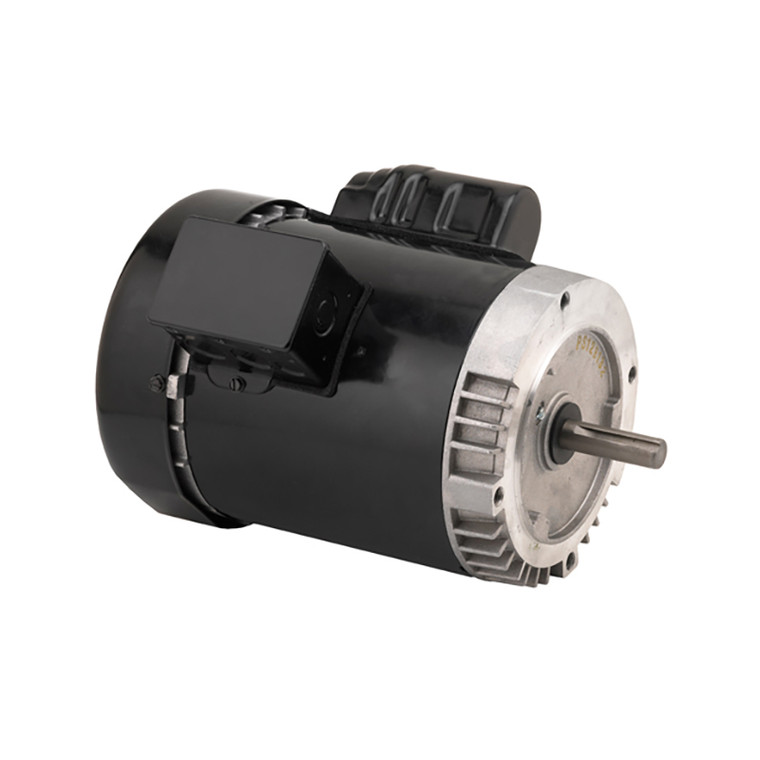

US Motors (Nidec), AC Motor, T34CA1JCR, 0.75 HP, 3600 RPM, Single Phase, 115/208-230 V, 60 Hz, 56C (T34CA1JCR)

US Motors (Nidec), AC Motor, T34CA1JCR, 0.75 HP, 3600 RPM, Single Phase, 115/208-230 V, 60 Hz, 56C (T34CA1JCR)

Brand:
US Motors (Nidec)
Model:
T34CA1JCR
Condition:
New
0 Customer Reviews
VFDs.com Guarantee Badge
Out Of Stock
Call for Price
Adding to cart… The item has been added
Write a Review

Technical Specifications

Model:
T34CA1JCR
Brand:
US Motors (Nidec)
Product Condition:
New
Motor Type:
General Purpose
Horsepower Rating:
0.75 HP
Synchronous RPM:
3600 RPM
Rated RPM:
3450 RPM
Frame Size:
56C
Rated Supply Voltage:
115/208-230 V
Motor Enclosure Type:
Totally Enclosed Fan Cooled (TEFC)
Motor Design Class:
N
Full Load Torque:
17.98
Rated Voltage:
230 V
Rated Voltage:
115 V
Phase:
Single Phase
Service Factor:
1.15
Insulation Class:
B
Duty Cycle:
Continuous
Efficiency:
67.8%
C Dimension:
11.8
Bearing Type:
6203
Rated Input Frequency:
60 Hz
Motor Full Load Amps:
10.4/5.3-5.2 A

Product Information

US Motors (Nidec) Series

3/4 HP, 3450 RPM, T34CA1JCR, 115/208-230 V, 60 HZ, 56C
Download Brochure
