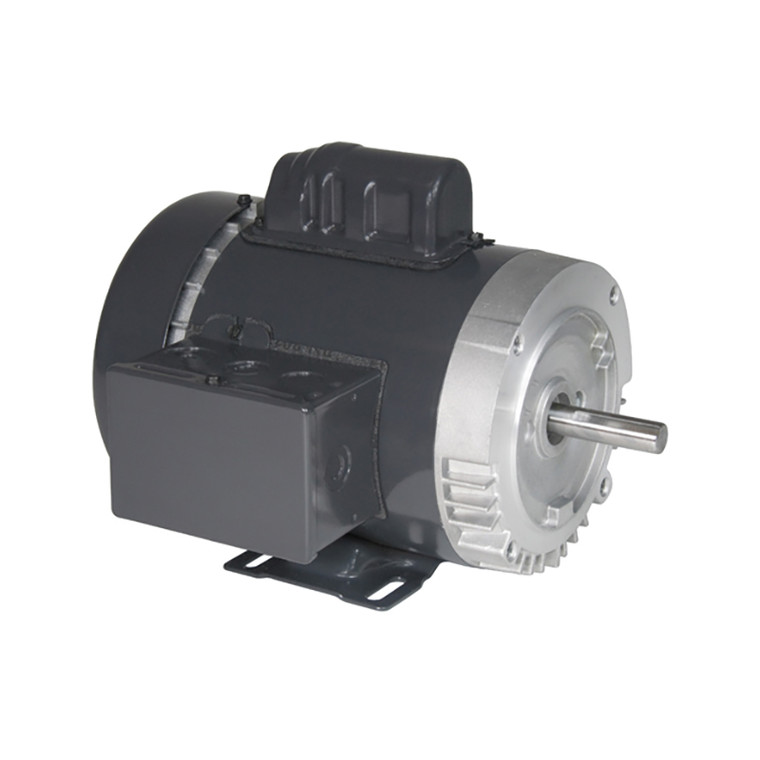

US Motors (Nidec), AC Motor, T2C2J14C, 2 HP, 1800 RPM, Single Phase, 115/208-230 V, 60 Hz, 145TC (T2C2J14C)

US Motors (Nidec), AC Motor, T2C2J14C, 2 HP, 1800 RPM, Single Phase, 115/208-230 V, 60 Hz, 145TC (T2C2J14C)

Brand:
US Motors (Nidec)
Model:
T2C2J14C
Condition:
New
0 Customer Reviews
VFDs.com Guarantee Badge
Out Of Stock
Call for Price
Adding to cart… The item has been added
Write a Review

Technical Specifications

Model:
T2C2J14C
Brand:
US Motors (Nidec)
Product Condition:
New
Motor Type:
General Purpose
Horsepower Rating:
2 HP
Synchronous RPM:
1800 RPM
Rated RPM:
1725 RPM
Frame Size:
145TC
Rated Supply Voltage:
115/208-230 V
Motor Enclosure Type:
Totally Enclosed Fan Cooled (TEFC)
Motor Design Class:
L
Full Load Torque:
96.5
Rated Voltage:
230 V
Rated Voltage:
115 V
Phase:
Single Phase
Service Factor:
1.15
Insulation Class:
F
Duty Cycle:
Continuous
Efficiency:
81.5%
C Dimension:
13.9
Bearing Type:
6203
Rated Input Frequency:
60 Hz
Motor Full Load Amps:
18.9/10.3-9.4 A

Product Information

US Motors (Nidec) Series

2 HP, 1725 RPM, T2C2J14C, 115/208-230 V, 60 HZ, 145TC
