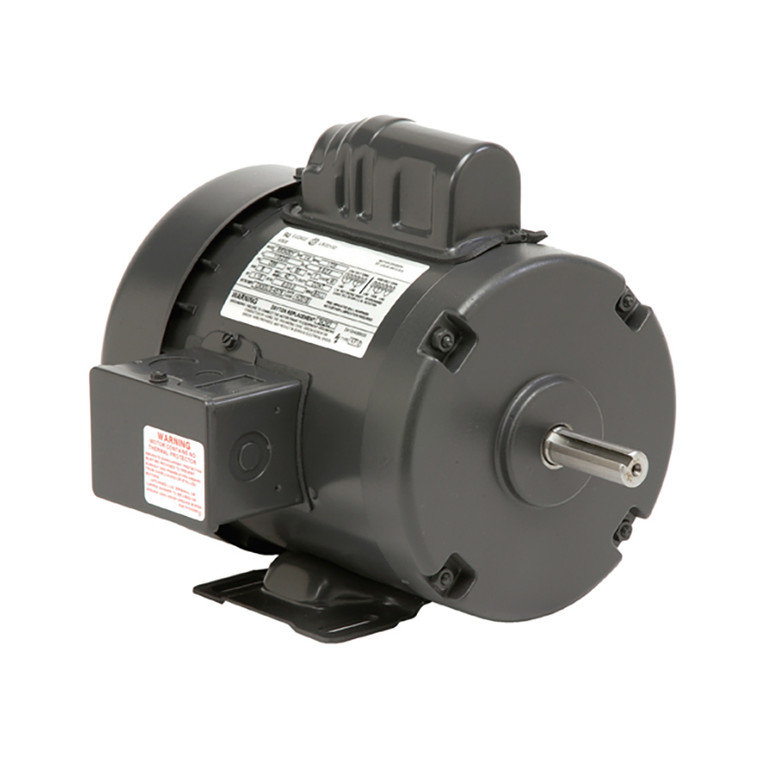

US Motors (Nidec), AC Motor, T1C2P18Z, 1 HP, 1800 RPM, Single Phase, 115/230 V, 60 Hz, 182 (T1C2P18Z)

Brand:
US Motors (Nidec)
Model:
T1C2P18Z
Condition:
New
0 Customer Reviews
Out Of Stock
Adding to cart… The item has been added

Technical Specifications

Model:
T1C2P18Z
Brand:
US Motors (Nidec)
Product Condition:
New
Motor Type:
General Purpose
Horsepower Rating:
1 HP
Synchronous RPM:
1800 RPM
Rated RPM:
1740 RPM
Frame Size:
182
Rated Supply Voltage:
115/230 V
Motor Design Class:
L
Rated Voltage:
230 V
Rated Voltage:
115 V
Phase:
Single Phase
Service Factor:
1
Insulation Class:
F
Duty Cycle:
Continuous
Efficiency:
71.7%
Construction:
Rolled Steel
C Dimension:
14.1
Bearing Type:
6205-2Z-J/C3
Rated Input Frequency:
60 Hz
Motor Full Load Amps:
13.8/6.9 A

Product Information

US Motors (Nidec) Series

1 HP, 1740 RPM, T1C2P18Z, 115/230 V, 60 HZ, 182
