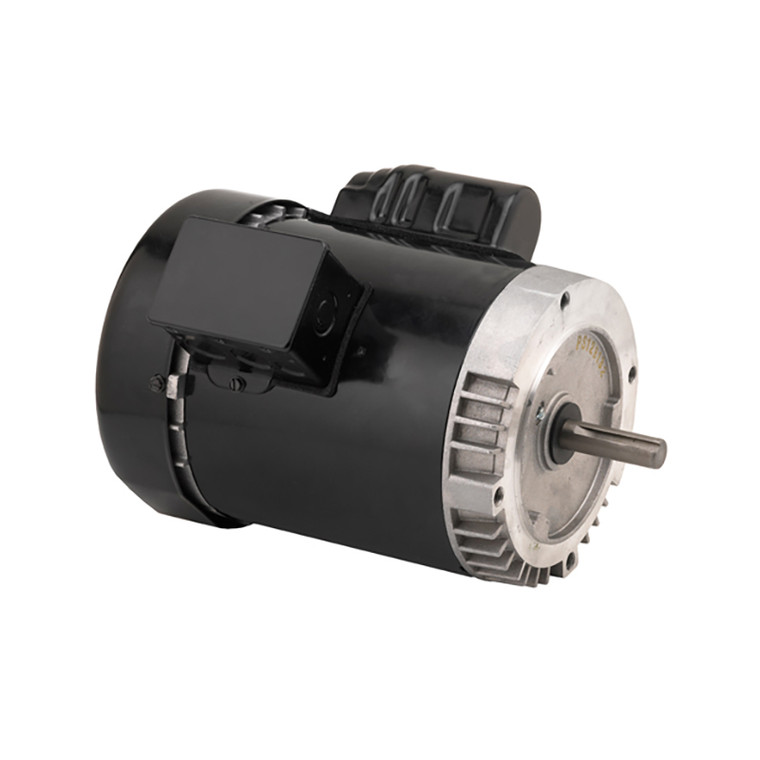

US Motors (Nidec), AC Motor, T13C2JCR, 0.33 HP, 1800 RPM, Single Phase, 115/208-230 V, 60 Hz, 56C (T13C2JCR)

US Motors (Nidec), AC Motor, T13C2JCR, 0.33 HP, 1800 RPM, Single Phase, 115/208-230 V, 60 Hz, 56C (T13C2JCR)

Brand:
US Motors (Nidec)
Model:
T13C2JCR
Condition:
New
0 Customer Reviews
VFDs.com Guarantee Badge
Out Of Stock
Call for Price
Adding to cart… The item has been added
Write a Review

Technical Specifications

Model:
T13C2JCR
Brand:
US Motors (Nidec)
Product Condition:
New
Motor Type:
General Purpose
Horsepower Rating:
0.33 HP
Synchronous RPM:
1800 RPM
Rated RPM:
1725 RPM
Frame Size:
56C
Rated Supply Voltage:
115/208-230 V
Motor Enclosure Type:
Totally Enclosed Fan Cooled (TEFC)
Rated Voltage:
230 V
Rated Voltage:
115 V
Phase:
Single Phase
Service Factor:
1.15
Insulation Class:
B
Duty Cycle:
Continuous
C Dimension:
11
Bearing Type:
6203
Rated Input Frequency:
60 Hz
Motor Full Load Amps:
6.6/3.0-3.3 A

Product Information

US Motors (Nidec) Series

1/3 HP, 1725 RPM, T13C2JCR, 115/208-230 V, 60 HZ, 56C
