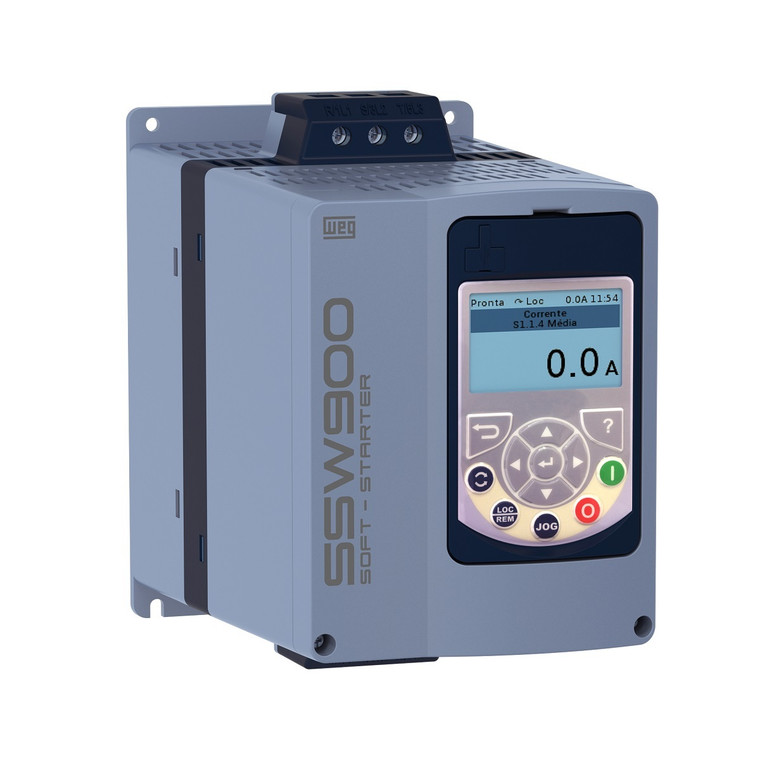

10 HP at 230 V, 20 HP at 460 V, 30 A, WEG SSW900 Series Soft Starter (SSW900A0030T5E2B)

10 HP at 230 V, 20 HP at 460 V, 30 A, WEG SSW900 Series Soft Starter (SSW900A0030T5E2B)

Brand:
WEG
Model:
SSW900A0030T5E2B
Condition:
New
0 Customer Reviews
VFDs.com Guarantee Badge
Out Of Stock
Call for Price
Adding to cart… The item has been added

Combining convenience and innovation, the SSW900 is the right choice for complete motor protection and start/stop control. Developed for industrial or professional use, the new line of soft-starters allows easy and simple access to the configuration settings and data. Using a menu structure, the new interface of the SSW900 line presents an unprecedented experience of interactivity with the user, allowing adjustments and configurations with online parameter help right on the HMI, in addition to event logs with date and time and setup assistant. The equipment also has built-in bypass, which contributes to extending the useful life of the drive, optimizing space and reducing heat dissipation in electric panels.

  • SSW900A0030T5E2B
  • 10 HP at 230 V
  • 20 HP at 460 V
  • 30 HP at 575 V
  • Three Phase
  • IP20 Enclosure
Write a Review

Technical Specifications

Product Information

WEG WEG SSW900 Series Soft Starter

Benefits

  • Built-in bypass, providing size reduction and energy savings
  • Ambient temperature up to 55°C without current derating
  • Possibility of standard connection (3 wires) or motor inside delta connection (6 wires)
  • Inputs and outputs with programmable functions and quick connect terminals
  • Different control methods via extremely high-performance algorithms, totally flexible, to meet the needs of any motor start and stop application needs
  • Pump control function for smart control of pumping systems
  • Advanced techniques to detect faults in the power supply and connections, enabling the user to choose the protection actuation between fault or alarm for full motor protection
  • Fire mode (emergency start)
  • Oriented start-up
  • WPS: free software to program both soft-starter and SoftPLC
  • 2 independent slots to connect plug-in modules
  • Real time clock
  • Fault and alarm log saved with time and date by the RTC
  • Exportation of the WPS history to csv file

Features

Standard Features

  • Ratings: 10A to 1400A @ 220Vac – 575Vac (+10% / -15%)
  • 1/90-250Vac auxiliary control voltage.
  • Built-in rated (AC1) bypass contactors for all models.
  • Conformal coated circuit boards.
  • Detachable Graphic HMI with USB port, with built-in Bluetooth and copy function.
  • Oriented start-up and online help.
  • Real time clock with event log.
  • 2 independent slots to connect plug-in modules
  • Voltage ramp, Current Limit, Pump Control, Torque control, Current, Ramp start modes.
  • Inputs and outputs with programmable functions (5 DIs, 3 ROs, 1 AO & 1 Motor PTC Input as standard)
  • Communication Options: RS-485 (Modbus RTU), CANopen, DeviceNet, Profibus DP, Ethernet/IP, Modbus TCP/IP, Profinet IO.
  • SoftPLC Built in.
  • Integral motor thermal protection.

Applications:

  • Pumps
  • Fans/Exhausters/Blowers
  • Mixers
  • Compressors
  • Conveyors
  • Centrifuges
  • Rock crushers
  • Grinders
  • Rotary ovens
  • Ball and Hammer Mills
  • Wood chippers
  • Dryers
  • Roller tables
