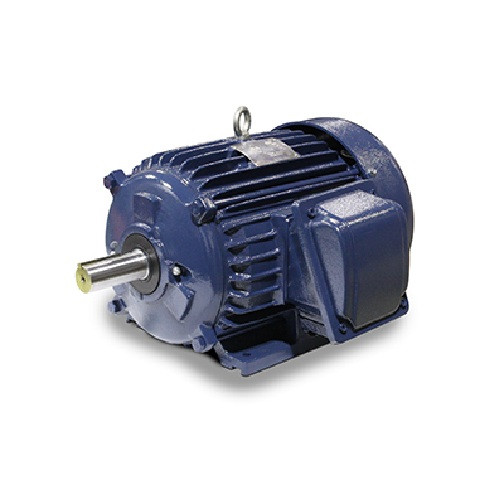

TECO QT1256 125 HP, 1200 RPM, 208-230/460 V, TEFC, 445/447T Frame, Three Phase, 60/50 Hz (QT1256)

Brand:
TECO
Model:
QT1256
Condition:
New
0 Customer Reviews
VFDs.com Guarantee Badge
Out Of Stock
Call for Price
Adding to cart… The item has been added

TECO QT1256:

  • 125 HP
  • 144 Motor FLA
  • 208-230/460 V
  • 1200 RPM
  • 445/447T Frame
  • Totally Enclosed Fan Cooled (TEFC)
  • Three Phase
  • 91.5% Efficiency
  • 89% Power Factor
Write a Review

Technical Specifications

Product Information

TECO Series

OIL WELL PUMP TEFC

APPLICATIONS:

  • Oil Well Pumps
  • Any Applications Requiring NEMA Design D Torques

Features

FEATURES:

  • Output Range: 5 - 125 HP
  • Speed: 1200 RPM
  • Enclosure: Totally Enclosed Fan Cooled (IP54)
  • Voltage: 230/460/796V
  • Three Phase, 60 Hz, 1.15 Service Factor (Continuous)
  • Class F Insulation
  • Class B Temperature Rise
  • NEMA Design D Torques
  • Cast Iron Frame, End Brackets, Fan Cover and Main Conduit Box
  • Grounding Terminal Inside Main Conduit Box with additional Foot Grounding Provision
  • Oversized Main Conduit Box Rotatable in 90 Degree Increments - F2 Mounted, F1 Available with Modification
  • Designed for 40 C Ambient Temperature
  • Designed for 3300 ft. Elevation
  • Bi-Directional Rotation
  • 1045 Carbon Steel Shaft
  • Standard with Klixon 9700K Temperature Limiting Switch, 1 Per Phase
  • 5% Minimum Slip
