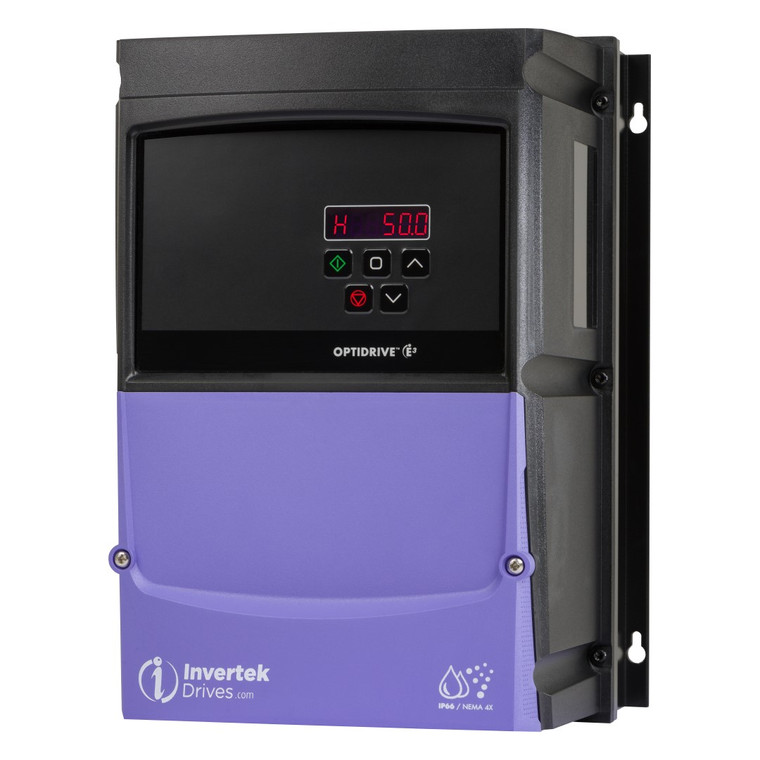

7.5HP, 240V, Invertek OptiDrive E3 VFD (ODE-3-320240-3F4A-MTP)

7.5HP, 240V, Invertek OptiDrive E3 VFD (ODE-3-320240-3F4A-MTP)

Brand:
INVERTEK
Model:
ODE-3-320240-3F4A-MTP
Condition:
New
0 Customer Reviews
VFDs.com Guarantee Badge
Out Of Stock
$2,440.00
Online Price: $1,171.20
Adding to cart… The item has been added

Invertek variable frequency drives focus on performing well, providing simple programming, and fitting your application.

ODE-3-320240-3F4A-MTP

  • 7.5 Horsepower
  • 24 Amps
  • 240 Volts
  • IP 66
  • 3 Phase Input - 3 Phase Output
Write a Review

Technical Specifications

Series:
OptiDrive E3
Model:
ODE-3-320240-3F4A-MTP
Brand:
INVERTEK
Product Condition:
New
Warranty:
2 Year
Horsepower Rating:
7.5 HP
Rated Amps:
24 A
Rated Voltage:
240 V
Output Voltage:
240 V
Output Amperage Rating:
24 A
Phase Rating:
3 Phase Input - 3 Phase Output
Phase:
Three Phase
Enclosure Rating:
IP 66
Frame Size:
3
Rated Input Frequency:
60 Hz
Height:
12.20 in
Width:
8.30 in
Depth:
9.30 in

Product Information

INVERTEK OptiDrive E3 Series

Invertek focuses on sophisticated motor controls for energy savings. The Optidrive E3 is easy to understand and use. The space-saving design helps fit in compact applications.

Standard Features

  • Simple commissioning with 14 parameter basic setup and default settings suitable for most applications
  • Contactor-style connections for simple wiring
  • Intuitive keypad with precise digital control at the touch of a button
  • Applications macros to switcch between industrial, pump, and fan modes
  • Internal category C1 EMC filter
  • Single phase input and output options
