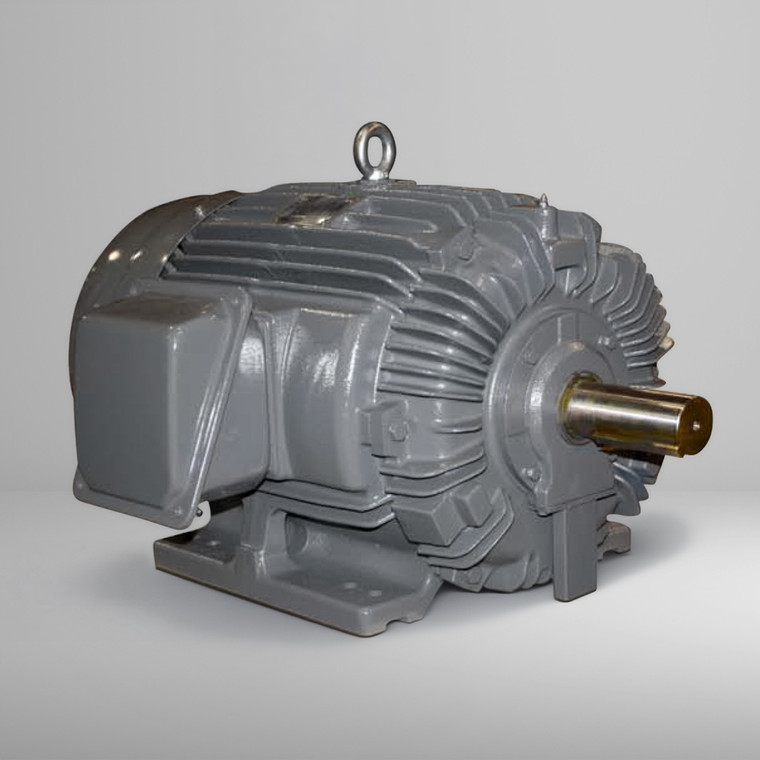

TECO NP0016G 1 HP, 1200 RPM, 208-230/460 V, TEFC, 143/145T Frame, 60/50 Hz (NP0016G)

TECO NP0016G 1 HP, 1200 RPM, 208-230/460 V, TEFC, 143/145T Frame, 60/50 Hz (NP0016G)

Brand:
TECO
Model:
NP0016G
Condition:
New
0 Customer Reviews
VFDs.com Guarantee Badge
Out Of Stock
Call for Price
Adding to cart… The item has been added

TECO NP0016G:

  • 1 HP
  • 1.73 Motor FLA
  • 208-230/460 V V
  • 1200 RPM
  • 143/145T Frame
  • Totally Enclosed Fan Cooled (TEFC)
  • Three Phase
  • 82.5% Efficiency
  • 65.5% Power Factor
Write a Review

Technical Specifications

Product Information

TECO Series

MAX-PE NEMA PREMIUM EFFICIENCY SEVERE DUTY. TEFC INVERTER DUTY SGR

APPLICATIONS:

  • Fans & Blowers
  • Pumps
  • Compressors
  • HVAC Equipment
  • AEGIS Shaft Grounding Ring

Features

FEATURES:

  • Output Range: 1 - 75 HP
  • Speed: 3600, 1800 & 1200 RPM
  • Enclosure: Totally Enclosed Fan Cooled (IP54)
  • Voltage: 230/460V (Usable on 208V)
  • Three Phase, 60 Hz, 1.15 Service Factor (Continuous); 50 Hz, 1.0 Service Factor (Continuous)
  • Grounding Ring Factory Installed Externally on NDE Bracket for F# 143T - 286T; Internally on NDE for F# 284TS - 405T
  • Class F Insulation
  • Class B Temperature Rise
  • NEMA Design B Torques as a Minimum; Various Ratings also Meet Design C
  • Cast Iron Frame and End Brackets; Rolled Steel Fan Cover and Main Conduit Box
  • Grounding Terminal Inside Main Conduit Box
  • Oversized Main Conduit Box Rotatable in 90 Degree Increments - F1 Mounted
  • Designed for 40 degrees C Ambient Temperature
  • Designed for 3300 ft. Elevation
  • Bi-Directional Rotation
  • 1045 Carbon Steel Shaft
  • Aluminum Die Cast Squirrel Cage Rotor Construction
  • New Dual Column Design Nameplate as Standard (60/50 Hz)
  • Suitable for Inverter Use per NEMA MG-1 Part 31.4.4.2
