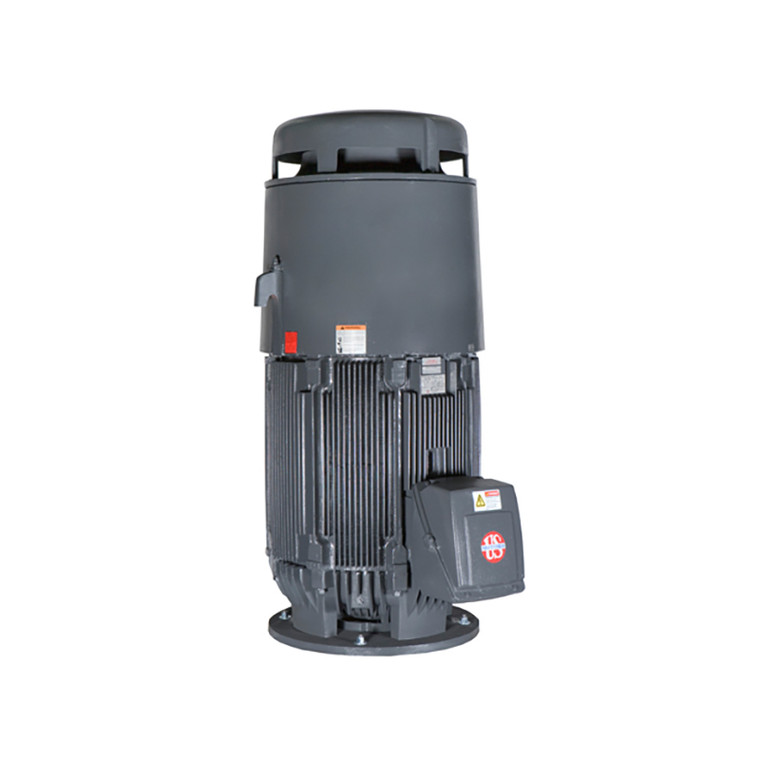

US Motors (Nidec), AC Motor, NO25P2BE, 25 HP, 1800 RPM, Three Phase, 230/460 V, 60 Hz, 284VPZ (NO25P2BE)

Brand:
US Motors (Nidec)
Model:
NO25P2BE
Condition:
New
0 Customer Reviews
Out Of Stock
Adding to cart… The item has been added

Technical Specifications

Model:
NO25P2BE
Brand:
US Motors (Nidec)
Product Condition:
New
Horsepower Rating:
25 HP
Synchronous RPM:
1800 RPM
Rated RPM:
1775 RPM
Frame Size:
284VPZ
Rated Supply Voltage:
230/460 V
Motor Enclosure Type:
Weather Protected I (WP1)
Motor Design Class:
B
Full Load Torque:
73.9
Rated Voltage:
230 V
Rated Voltage:
460 V
Phase:
Three Phase
Service Factor:
1.15
Insulation Class:
F
Duty Cycle:
Continuous
Efficiency:
93.6%
Bearing Type:
6210-2Z-J/C3
Rated Input Frequency:
60 Hz
Motor Full Load Amps:
60/29.8 A

Product Information

US Motors (Nidec) Series

25 HP, 1775 RPM, NO25P2BE, 230/460 V, 60 HZ, 284VPZ
